Balluff

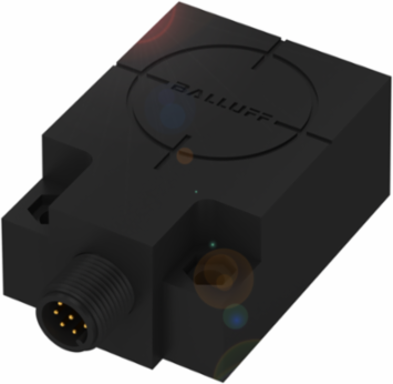

Balluff BIS M-410-068-001-09-S72 HF Read/Write Head with USB 2.0 Interface, IP67, 40 x 24 x 56 mm

HF Read/Write Head with USB 2.0 Interface, IP67, 40 x 24 x 56 mm
  • MPN: BIS M-410-068-001-09-S72
  • PPN: BAL-BIS00W4

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1516.80/ EA

Description

The HF read/write heads from Balluff, operating at 13.56 MHz, are engineered for robust performance in demanding environments. With a compact design measuring 40 x 24 x 56 mm and an impressive IP67 rating, these units are built to withstand harsh conditions while maintaining reliable data communication. They support multiple data carrier types including DIN ISO 14443 and DIN ISO 15693, making them versatile for various applications. Featuring an integrated processor unit and a USB 2.0 interface, these read/write heads ensure seamless connectivity and efficient operation across a wide ambient temperature range of -20 to 50 °C. With a metal-free installation requirement and durable housing made from PC with PU potting, they are ideal for use in sensitive environments where interference must be minimized.

Specifications

Specifications

Country of Origin
Hungary
Dimension
40 x 24 x 56 mm
Antenna type
round
Connection
Connector, M12x1-Male, 5-pin
Interface
USB 2.0
Ambient temperature
-20...50 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
Product GroupHF (13.56 MHz)
Installationmetal-free (clear zone)
Supported data carrier typesDIN ISO 14443; DIN ISO 15693
Housing materialPC, With PU potting
Operating voltage Ub5 V DC
IP rating per IEC 60529IP67
