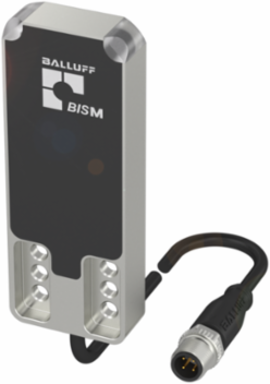

HF Read/Write Head 13.56 MHz, IP67, 40 x 15 x 105 mm

Documentation & Downloads

Balluff BIS M-408-045-001-07-S4 HF Read/Write Head 13.56 MHz, IP67, 40 x 15 x 105 mm

MPN: BIS M-408-045-001-07-S4
PPN: BAL-BIS014J

CAD

$944.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

HF Read/Write Head 13.56 MHz, IP67, 40 x 15 x 105 mm

Documentation & Downloads

Specifications

Additional

Frequency: 13.56 MHz

Operating voltage: 18...30 VDC Supports only LPS/Class 2

Process data out: 10 bytes

Connection: Connector, M12x1-Male, 4-pin

Antenna type: round

Ambient temperature: -20...80 °C

Interface: IO-Link 1.1

Supported data carrier types: DIN ISO 14443; DIN ISO 15693

Data transfer rateCOM2 (38.4 kBaud)

Process data in10 bytes

Dimensions40 x 15 x 105 mm

Housing materialZinc, Die casting, nickel-plated

IP RatingIP67

Approval/ConformityCE; UKCA; FCC (Radio); IC RSS-210; EAC; WEEE

Installationmetal-free (clear zone)

Country of OriginHungary
