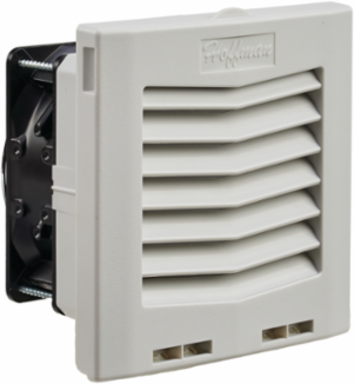

nVent Hoffman HF0516414 Side-Mount Filter Fan, 115V 35CFM, 6.15 x 6.16 x 3.98 Inch, Lt Gray
- MPN: HF0516414
- UPC: 783510341954
- PPN: HOF-HF0516414
- UNSPSC: 40101604
CAD
$311.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF05 Side-Mount Filter Fan, HF0516414 item is rated 115V 35CFM colored Lt Gray.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Additional
- Voltage
- 115 VAC
- Flow Rate
- 35 CFM
- Airflow
- 59 CFM
- Weight
- 2.5 lb
- Finish
- Light Gray, RAL 7035
Amperage0.16/0.14 A
Operating Temperature Range-10 to 65 °C
Size6.15 x 6.16 x 3.98 in
MaterialPlastic, Non-metallic
ColorLight Gray
