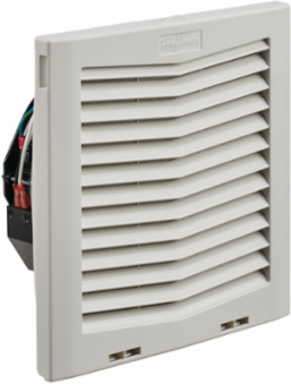

nVent Hoffman HF1016514 10 Inch Side-Mount Filter Fan 115V 103CFM Light Gray
- MPN: HF1016514
- UPC: 783510342388
- PPN: HOF-HF1016514
- UNSPSC: 40101604
CAD
$628.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF10 Side-Mount Filter Fan, HF1016514 item is rated 115V 103CFM colored Lt Gray.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 115
- Width (W)
- 258
- Max Current
- 0.38
- Material
- Plastic
- Color Code
- RAL 7035
- Size
- 10.13 x 10.14 x 4.68 in
- Voltage Rating
- 115 VAC
- Ambient Temperature
- 14 to 131 deg F
- Finish
- Lt Gray
Airflow175
Height (H)257
Depth (D)119
Operating Temperature-10
ColorLight Gray
Weight4.4
Flow Rate103 CFM
Amperage Rating0.38/0.36 A
Housing MaterialNon-metallic
