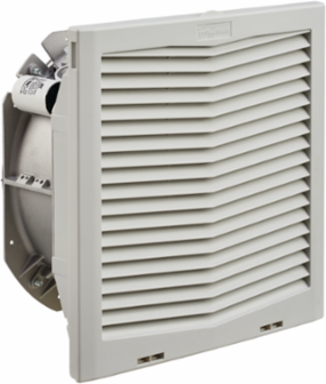

nVent Hoffman HF1316424 Side-Mount Filter Fan 115V 484CFM 12.8 x 12.82 x 6.31 Inch Lt Gray
- MPN: HF1316424
- UPC: 783510342135
- PPN: HOF-HF1316424
- UNSPSC: 40101604
CAD
$743.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF13 Side-Mount Filter Fan, HF1316424 item is rated 115V 484CFM colored Lt Gray.
Features
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Documentation & Downloads
Specifications
Additional
- Voltage
- 115 VAC
- Flow Rate
- 484 CFM
- Amperage Rating
- 1.08/1.18 A
- Operating Temperature Range
- 14 to 131 °F (-10 to 55 °C)
- Service Life (hours) at 40°C
- 59,000
- Sound Pressure
- 67 / 70 dBA at 50 / 60 Hz
- Width
- 326 mm
- Depth
- 160 mm
- Weight
- 11.6 lb
- Power Connection
- Terminal Block
- Housing Material
- Non-metallic
- Color
- Light Gray
Airflow484 CFM (822 m3/hr)
Max Current1.18 A
Power Consumption112/148 Watts
Service Life40,000 to 100,000 hours
Fan RPM2550 / 2850 RPM
Size12.8 x 12.82 x 6.31 in
Height325 mm
Cutout Dimensions11.5 x 11.5 in (292 x 292 mm)
Mounting TypeSide wall
MaterialPlastic
FinishLight Gray (RAL 7035)
ComplianceUL Listed, CE, EAC, Type 12
