Leviton

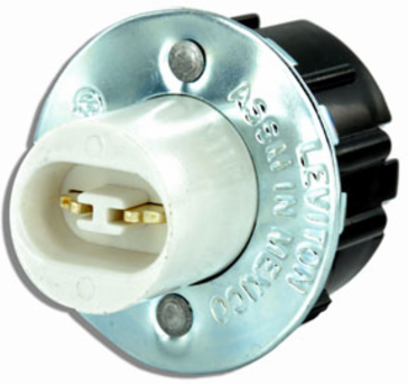

Leviton 523 High-Output Base, Double Contact, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White

High-Output Base, Double Contact, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White
  • MPN: 523
  • UPC: 078477107713
  • PPN: LEV-523

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$16.46/ EA

Description

High-Output Base, Double Contact, Standard Fluorescent Lampholder, Snap-In, Plunger, Quickwire 18AWG Solid or Str Tinned - White

Specifications

Product Features

Availability
Distribution
Body Material
Thermoset
Contact Material
Silver-Plated Copper-Alloy
Lamp Contacts
Double Contact
Light Type
Fluorescent
Warranty
1 Year Limited
Base MaterialThermoplastic
ColorWhite
Lamp BaseHigh-Output
Lampholder TypeLinear
Standards and CertificationsUL/CSA

Mechanical Specifications

Contact Type
Plunger
Panel Thickness
.035 - .050
Termination
Quickwire 18AWG Solid or Str. Tinned
Mounting TypeSnap-In
Rated Wattage660W
Voltage1000 Volt

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Standards and Certifications

CSA Certified
File LR-5863
UL ListedFile E5833

Downloads
