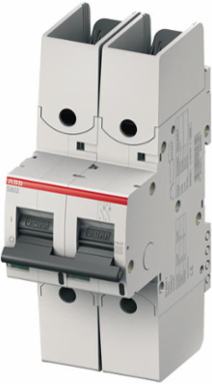

ABB S802S-UCK25-R High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
- MPN: S802S-UCK25-R
- UPC: 888614052857
- PPN: ABB-S802S-UCK25-R
CAD
$523.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Performance Miniature Circuit Breaker with Ring Terminal Connection, Rated Current 25 Amps, 2 Pole, Trip Curve K, Voltage up to 250 VDC Per Pole, Ultimate Short-Circuit Breaking Capacity 50 kA, EN 60715 for Mounting on DIN Top Hat Rail, IEC/EN 60947-2
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121603 Miniature circuit breakers
- Brand Name
- ABB
- Application
- Protection and Control of the Circuits Like Motors, Transformer and Auxiliary Circuits, Against Overloads and Short-Circuits When a High Breaking Capacity is Required; Commerical and Industrial
- Voltage Rating
- 250 VDC Per Pole
- Trip Type
- K
- Number Of Poles
- 2
- Width
- 53 mm
IGCC4897 Miniature circuit breakers
TypeHigh Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
StandardIEC/EN 60947-2
Amperage Rating25 Amps
Interrupt Rating50 kA
Length88.5 mm
Height95 mm
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
