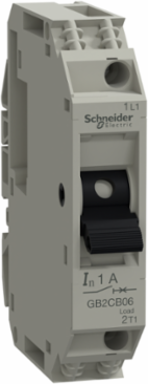

Schneider Electric GB2CB06 TeSys GB2 Circuit Breaker, 1P, 1A, 50kA, Thermal-Magnetic, DIN Rail Mounted
- MPN: GB2CB06
- PPN: SCH-GB2CB06
CAD
$91.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GB circuit breaker, 1 pole (1P), 1A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 14A (13 In) and breaking capacity Icu 50kA@240V. It can also be used for protection of DC loads up to 1A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA).
Features
- The Schneider Electric TeSys GB2CB06 features a universal network design rated for up to 277V AC and 48V DC, allowing you to standardize your inventory with a single component. This versatility eliminates the need to source separate protectors for mixed-voltage control loops, reducing design complexity and ensuring reliable operation across varying industrial power setups.
- Engineered with an impressive short-circuit breaking capacity of 50 kA at 240V AC, this 1-Amp miniature circuit breaker stops severe upstream electrical faults from destroying your downstream industrial automation components. It provides robust protection for sensitive control panels, reducing catastrophic equipment failure and keeping your plant's operational downtime to an absolute minimum.
- Utilizing precise thermal-magnetic trip technology, the unit offers dual-layer protection with a dedicated 1A thermal threshold for continuous overcurrent and a 14A magnetic tripping point for immediate isolation of dead shorts. This responsive curve effectively eliminates nuisance tripping caused by standard control circuit startup surges while delivering instant fault clearance when actual hazards occur.
- Featuring an ultra-slim 15mm width footprint, this single-pole (1P) protector snaps effortlessly onto standard 35mm symmetric DIN rails or Telequick mounting plates. Its compact architecture maximizes high-density rail space inside packed control panels, letting your panel shop build smaller, cleaner layouts without sacrificing safety clearances.
- Built to meet rigorous global standards, the GB2CB06 carries dual UL 1077 and CSA C22.2 No 235 supplementary protector listings, alongside IEC/EN 60947 certifications. This comprehensive regulatory compliance satisfies local electrical inspections and ensures your export panels seamlessly clear international quality audits.
- Wrapped in an IP20 finger-safe housing that shields operators from accidental contact, this industrial protector is mechanically rated for up to 8,000 operational cycles and tested for high shock and vibration resistance. It maintains rigid electrical integrity and precise calibration even when mounted directly alongside heavy, vibrating motor starters or contactors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, India, United States
Depth67 mm
Complementary Attributes
- Line Rated Current
- 1 A
Rated Current1 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27, vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- Mounting Support
- rail, plate, rail
- Certificate Agency
- UL, CSA
- Connections - Terminals
- connector 2 0.75-2.5 mm²flexible with cable endconnector 1 0.75-6 mm²solid without cable end, connector 2 0.75-4 mm²solid without cable endconnector 1 0.75-4 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.13269278140252164, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.34814667414321465
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- GB2
- Device Application
- control
- Electrical Durability
- 8000 cycles
- Fire Resistance
- 960 °C IEC 60695-2-1
- Mechanical Durability
- 8000 cycles
- Network Frequency
- 50/60 Hz IEC 60947-2
- Number Of Poles
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- set of 6
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rated Current 1
- 1 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation against overloads and short circuits and protect people and premises at risk of fire or explosion against insulation defects in a circuit with rated voltage 250V (Ue), rated current 2A (In), with 1P+N poles, a rated breaking capacity 15kA (Icn), and, in the Industrial application areas, while protecting them against the penetration of solid objects and liquids (IP20) in accordance with the standard IEC 62262, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 26.28
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 74 mm
- [Ics] Rated Service Short-circuit Breaking Capacity
- 25 % 230/240 V AC 50/60 Hz IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 50.900 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Positionhorizontal, vertical
Utilisation Categorycategory A IEC 60947-2DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
[Ue] Rated Operational Voltage250 V AC 50/60 Hz IEC 60947-2, 277 V AC 60 Hz CSA C22.2 No 235, 277 V AC 60 Hz UL 107748 V DC
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0035760524933775902
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 2.363720566749677
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typetoggle
Device Short NameGB2
Energy Efficiency OptimizedFalse
Magnetic Tripping Current14-14 A
Mounting Modeby clips
Network TypeAC/DC
Power Dissipation Per Pole2 W
Product NameTeSys GB2
Protective TreatmentTC
RangeTeSys
Software Versionv6.2.4
Tightening Torque1.2 N.m connector
Trip Unit Technologythermal-magnetic
R Magnetic Tripping Current14-14 A
Pep CodeENVPEP2306023EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %36
Width Nominal15 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2.848136074788791
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2306023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches2
Environmental DisclosureENVPEP2306023EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
