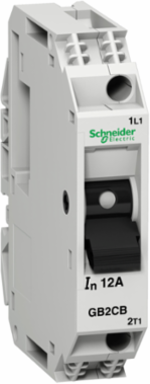

Schneider Electric GB2CB14 TeSys GB2 Circuit Breaker 1P 8A 250V Thermal-Magnetic DIN Rail
- MPN: GB2CB14
- PPN: SCH-GB2CB14
CAD
$91.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys GB circuit breaker, 1 pole (1P), 8A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal-magnetic protection with a magnetic tripping level at 108A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 8A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (15mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 6 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Network Type
- AC/DC
- Product Or Component Type
- circuit breaker
- Utilisation Category
- category A IEC 60947-2 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 75 % 110 V AC 50/60 Hz IEC 60947-2 || 75 % 230/240 V AC 50/60 Hz IEC 60947-2
- Poles Description
- 1P
- Device Application
- control
- Trip Unit Technology
- thermal-magnetic
Magnetic Tripping Current108-108 A
Product NameTeSys GB2
RangeTeSys
Breaking Capacity3 kA Icu 110 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 1.5 kA Icu 24 V DC IEC 60947-2 || 1 kA Icu 48 V DC IEC 60947-2
Network Frequency50/60 Hz IEC 60947-2
Device Short NameGB2
Complementary
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27 || vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- [Ue] Rated Operational Voltage
- 250 V AC 50/60 Hz IEC 60947-2 || 277 V AC 60 Hz CSA C22.2 No 235 || 277 V AC 60 Hz UL 1077 || 48 V DC
- Mounting Support
- plate || rail
- Connections - Terminals
- connector 1 0.75-6 mm²solid without cable end || connector 2 0.75-4 mm²solid without cable end || connector 1 0.75-4 mm²flexible with cable end || connector 2 0.75-2.5 mm²flexible with cable end
- Control Type
- toggle
- Electrical Durability
- 8000 cycles
- Tightening Torque
- 1.2 N.m connector
- Quantity Per Set
- set of 6
- Width
- 15 mm
[In] Rated Current8 A
Height74 mm
9 Mm Pitches2
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-2
Power Dissipation Per Pole2 W
Mounting Modeby clips
Mechanical Durability8000 cycles
Mounting Positionvertical || horizontal
Depth67 mm
Environment
- Product Certifications
- UL || CSA
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-2 || CSA C22.2 No 235 || UL 1077
- Protective Treatment
- TC
- Operating Altitude
- 3000 m
Ambient Air Temperature For Operation-20-60 °C
Ambient Air Temperature For Storage-40-80 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2306023
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
