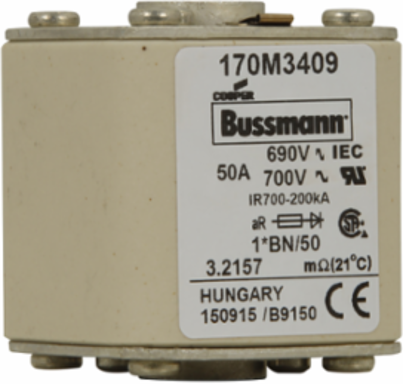

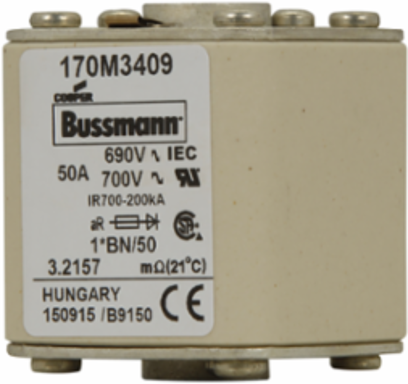

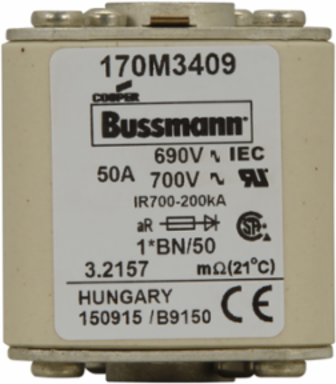

Bussmann 170M3409 High Speed Fuse 50A RMS, 700 Vac, Flush Mount, 5.433 Inch Length
- MPN: 170M3409
- UPC: 051712255967
- PPN: BUS-170M3409
CAD
$482.38
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 50A RMS, 700 Vac, Flush Mount, 5.433 Inch Length
Specifications
Key Specifications
| Type | Square body -B/- visual indicator |
|---|---|
| Amperage Rating | 50A |
| Interrupt Rating | 200 kAIC |
| Packaging Type | Standard |
| Pre Arc (I2T) | 77 |
| Class | Class aR |
| Mounting | Flush |
| Length | 5.433 IN |
| Weight | 1.6456 LB |
| Application | DC common bus, DC drives, power converters/rectifiers |
|---|---|
| Voltage Rating | 700 Vac (UL), 690 Vac (IEC) |
| Fuse Indicator | Non Indicating |
| Current Rating | 50A RMS |
| Clearing (I2T) | Clearing at 660V: 515 |
| Watt Losses | 11W |
| Height | 2.087 IN |
| Width | .315 IN |
