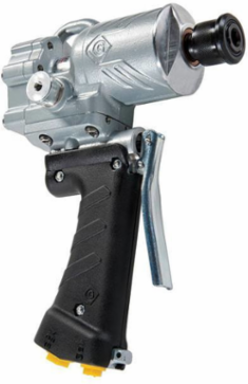

Greenlee HW1 High Torque 1/2 Inch Impact Wrench, 7/16 Inch Hex Quick Change Chuck, 500 FT-LB Torque
- MPN: HW1
- UPC: 783310003731
- PPN: GRN-HW1
- UNSPSC: 27112713
CAD
$2936.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Torque 1/2 Inch Impact Wrench, 7/16 Inch Hex Quick Change Chuck, 500 FT-LB Torque
Features
- Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the cast handle
- Weight reduction of 14% to previous models
- Improved center-of-gravity for superior ergonomics
- Increased service life with the addition of back-up rings and larger O-rings
- Built-in hydraulic check valve to eliminate damage from an improperly connected tool
- Large and strong lifting eye for easy and secure storage
- Longer and wider trigger provides improved control with insulated gloves
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 8.200 IN
- Weight
- 6.500 LB (2.930 KG)
- Accessory
- NR1 Nut Runner With Adapter For 5/8'', 1/2'', 13/16'' and 1.000'' Square Nuts, NR2 Nut Runner With Adapter For 1.000'', 1-1/8'' And 1-5/16'' Square Nuts, 00376 Trigger Guard Kit For HW1 Or HW1V, 49314 Heavy Duty 7/16'' Hex X 1/2'' Square Drive Shank
- Drive Size
- 1/2 IN
- Hydraulic System
- Super Spool Selector For Open and Closed-Center Systems
- Operating Pressure
- 1000 - 2500 PSI (69 - 170 BAR)
- Pressure Port
- 9/16 - 18 SAE O-Ring
- Return Port
- 3/4 - 16 SAE O-Ring
- Type
- Hydraulic, High Torque
Width4.200 IN
Height11.000 IN
Handle TypeImpact And Temperature Resistant Replaceable Polymer Grip
Capacity7/16 IN Hex
Flow Range4 - 12 GPM (15 - 46 LPM)
Includes7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN
Optimum Flow Range5 - 8 GPM (19 - 30 LPM)
Replacement54923 HTMA Male Coupler - HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler - HTMA, 9/16-18 SAE O-Ring Exterior Thread
Torque Rating500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum, 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Minimum
Regulations
- REACH Compliant
- Yes
