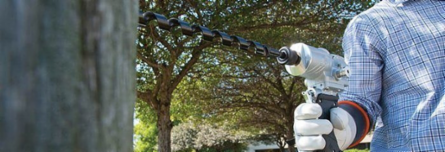

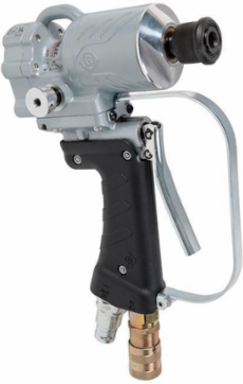

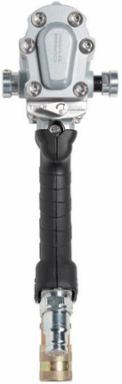

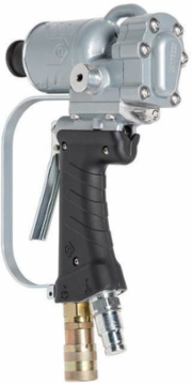

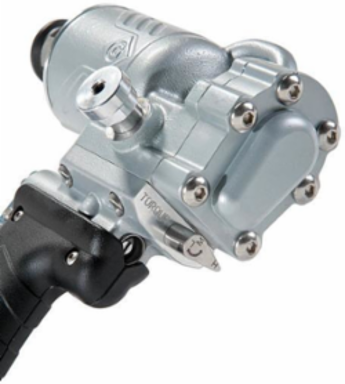

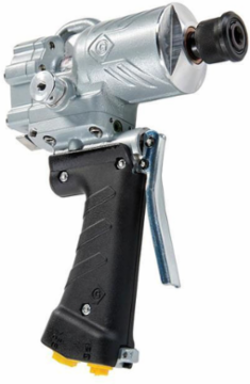

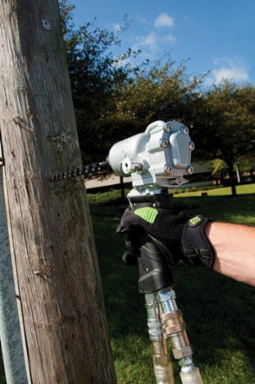

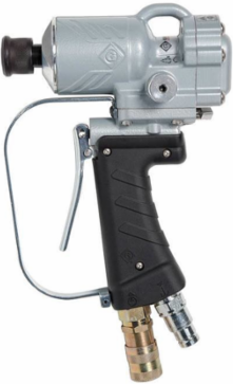

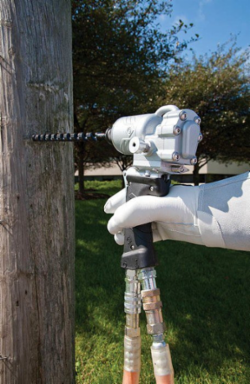

Greenlee HW1V Hydraulic High Torque 1/2 Inch Impact Wrench, 500 FT-LB Torque, 7/16 Inch Hex Chuck
- MPN: HW1V
- UPC: 783310003724
- PPN: GRN-HW1V
- UNSPSC: 27112713
CAD
$3431.10
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hydraulic High Torque 1/2 Inch Impact Wrench, 500 FT-LB Torque, 7/16 Inch Hex Chuck
Features
- Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the cast handle
- Weight reduction of 14% to previous models
- Improved center-of-gravity for superior ergonomics
- Increased service life with the addition of back-up rings and larger O-rings
- Built-in hydraulic check valve to eliminate damage from an improperly connected tool
- Large and strong lifting eye for easy and secure storage
- Longer and wider trigger provides improved control with insulated gloves
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 8.200 IN |
| Weight | 6.600 LB (2.970 KG) |
| Accessory | NR1 Nut Runner With Adapter For 5/8 IN, 1/2 IN, 13/16 And 1.000 Square Nuts, NR2 Nut Runner With Adapter For 1.000 IN, 1-1/8 And 1-5/16 Square Nuts, 00376 Trigger Guard Kit For HW1 Or HW1V, 49314 Heavy Duty 7/16 Hex X 1/2 Square Drive Shank IN |
| Drive Size | 1/2 IN |
| Hydraulic System | Super Spool Selector For OpenAnd Closed Center Systems |
| Operating Pressure | 1000 - 2500 PSI (69 - 170 BAR) |
| Pressure Port | 9/16-18 SAE O-Ring |
| Return Port | 3/4-16 SAE O-Ring |
| Type | Hydraulic, High Torque |
| Width | 4.200 IN |
|---|---|
| Height | 11.000 IN |
| Handle Type | Impact And Temperature Resistant Replaceable Polymer Grip |
| Capacity | 7/16 Hex IN |
| Flow Range | 4 - 12 GPM (15 - 46 LPM) |
| Includes | 7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN |
| Optimum Flow Range | 5 - 8 GPM (19 - 30 LPM) |
| Replacement | 54923 HTMA Male Coupler - HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler - HTMA, 9/16-18 SAE O-Ring Exterior Thread |
| Torque Rating | 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum, 160 FT-LB At 8 GPM (213 N-M At 30 LPM) Minimum |
Regulations
| REACH Compliant | Yes |
|---|
