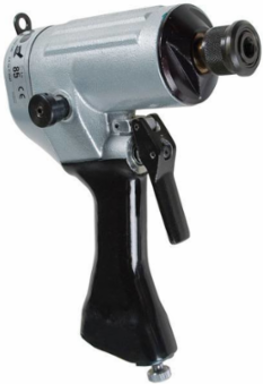

Greenlee H8508-1V Impact Wrench 1/2 Inch 7/16 Inch Hex QC, 400 FT-LB Torque, 7.7 LB Weight
Greenlee H8508-1V Impact Wrench 1/2 Inch 7/16 Inch Hex QC, 400 FT-LB Torque, 7.7 LB Weight
- MPN: H8508-1V
- UPC: 783310126836
- PPN: GRN-H8508-1V
- UNSPSC: 27112713
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3001.10/ EA
Features
- Twin-hammer impact mechanism provides high performance and reliability
- Button to switch between forward and reverse rotation
- One-piece handle and impact housing casting provide long life
- Super Spool permits quick switches between open-center and closed-center hydraulic systems
- Heat-insulated handle, ergonomically positioned for comfort
- Well balanced for comfortable operation
- Most durable and longest life of any 1/2 IN wrench on the market
Specifications
Specifications
- Country of Origin
- United States
- Length
- 8.200 IN (208.000 MM)
- Weight
- 7.700 LB (3.500 KG)
- Accessory
- 54923 HTMA Male Coupler, 54925 HTMA Female Coupler, 49314Heavy Duty 7/16 IN Hex By 1/2IN Square Drive Shank Adapter
- Flow Range
- 4 - 10 GPM (15 - 38 LPM)
- Includes
- 49314 Heavy Duty 1/2 IN Square Drive Adapter
- Optimum Flow Range
- 5 - 8 GPM (19 - 30 LPM)
- Return Port
- 3/4 - 16 SAE O-Ring
Width4.200 IN (107.000 MM)
Height10.600 IN (269.000 MM)
Handle TypeHeat-Insulated
Capacity7/16 IN
Hydraulic SystemSuper Spool Selector For Either Open-Center Or Closed-Center
Operating Pressure1000 - 2000 PSI (69 - 140 BAR)
Pressure Port3/4 - 16 SAE O-Ring
Torque Rating400 FT-LB At 8 GPM (542 N-M AT 30 LPM) Maximum, 400 FT-LB 8 GPM (542 N-M At 30 LPM) Minimum
Regulations
- REACH Compliant
- Yes
