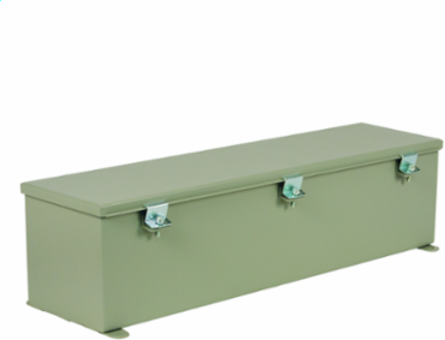

Wiegmann T2224CH Hinged-Cover Wire Trough 2.5X2.5X24 Carbon Steel - Gray
- MPN: T2224CH
- UPC: 786725326266
- PPN: HBL-T2224CH
- UNSPSC: 39131714
CAD
$462.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hinged-Cover Wire Trough 2.5X2.5X24 Carbon Steel - Gray
Features
- Trough and cover fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Oil resistant gasket and adhesive are provided. Trough comes complete with easy to operate external clamps and a continuous hinge. External mounting feet are provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Length
- 24.000 in
- Height
- 3 in
- Color
- Ansi-61 Gray Smooth
- Finish
- Polyester Powder
- Standard
- cULus
- Width
- 3 in
- Accessory Type
- Trough
- Finish Type
- Polyester Powder
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- JIC-WW TROUGH,CH, 2.5X2.5X24
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Height2.500 in
Actual Width2.500 in
ApplicationDesigned to protect from dirt, dust, oil, and water.
Depth24 in
KnockoutsNo
TypeTrough
Weight6 lb.
Cover TypeHinged Cover
Nema Rating4, IP66
Class CodeP04
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP04P068
MaterialCarbon Steel
BOX SIZE3.500x25.000x4.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725326266
Pallet Height50.000 in
Pallet Weight1293.000 lb.
NAICS Code3359323106
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
