Nvent Hoffman

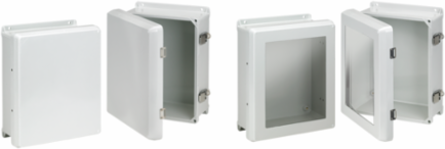

Nvent Hoffman HJB806HWPL1LG Flat Cover Window Enclosure 9.30x7.31x4.98 Inch, Light Gray, Fiberglass

Flat Cover Window Enclosure 9.30x7.31x4.98 Inch, Light Gray, Fiberglass
  • MPN: HJB806HWPL1LG
  • UPC: 783510159122
  • PPN: HOF-HJB806HWPL1LG
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$287.54/ EA

Description

Flat Cover Enclosure with Latches have secure seal, with optional window, and latches for easy access. This Flat Cover Window with Latches Type 4X, HJB806HWPL1LG item measures 7.71x5.72x4.05in. with a material of Fiberglass color Lt Gray.

Features

  • Compression-molded fiberglass construction
  • Overlapping solid- and window-cover models are available
  • Windows are clear polycarbonate
  • Cover fastens with padlockable Type 316 stainless steel latches
  • Type 304 stainless steel piano hinges
  • Integral mounting brackets
  • Enclosures protect equipment and operators from indirect electrical contact

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
145
Protection Rating
NEMA Type 12
Finish
Smooth Matte
Color Code
RAL 7035
Window Size (M x N)
6.00 x 4.00
Weight
3.4
Sub Brand
J-Series
Size
9.30x7.31x4.98 in
Height (H)196
Depth (D)103
Product FamilyHJ
ColorLight Gray
Thickness (T)3.6
Latch Quantity1
IP RatingIP66
MaterialFiberglass
NEMA Rating4X Watertight, corrosion-resistant

Downloads
