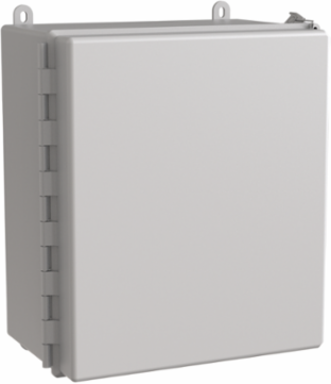

nVent Hoffman A14128CHQRFG Continuous Hinge QR Cover Enclosure 14x12x8 Inch, Light Gray, Fiberglass, NEMA 4X
- MPN: A14128CHQRFG
- UPC: 783510298005
- PPN: HOF-A14128CHQRFG
- UNSPSC: 39121324
CAD
$345.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Continuous Hinge Fiberglass Enclosures have secure seal for durability in corrosive environments. This Continuous Hinge QR Cover Enclosure 4X, A14128CHQRFG item measures 14x12x8inch with material Fiberglass color Light Gray.
Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- IP Rating
- IP66
- Size
- 14 x 12 x 8 in
- Mounting (G x H)
- 379 x 254 mm
- Width (W)
- 305 mm
- Weight
- 9 kg
- Finish
- Smooth Matte, Light Gray inside and out
- Cover Style
- Solid removable hinged cover
- Padlock Provision
- Included
- Cover Screws
- Type 316 stainless steel slotted
- BABA
- Yes, BABA Compliant
Protection RatingNEMA Type 12
SealWater-tight and dust-tight gasket
Overall Dimensions (L x W)370 x 319 mm
Height (H)356 mm
Depth (D)203 mm
MaterialFiberglass, Type 316 stainless steel, Brass, Polyester
Latch TypeQuick Release, corrosion-resistant polyester
Window MaterialScratch-resistant polycarbonate
Hinge Pin MaterialType 316 stainless steel
ColorLight Gray (RAL 7035)
Halogen ContentHalogen free
