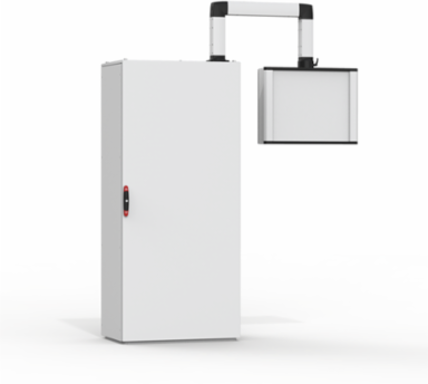

nVent Hoffman OICE406021 Human Machine Interface Enclosure 400x600x210mm IP55 Mild Steel
- MPN: OICE406021
- UPC: 783510524210
- PPN: HOF-OICE406021
CAD
$1328.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It has a pre-machined hole pattern to allow the fixation of a swing arm and a removable front plate at IP 55 protection. This Operator Interface Control Enclosure, OICE, OICE406021 item measures 400x600x210mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Material: Body and door are manufactured from 1.2 mm mild steel, front cover and handles manufactured from aluminium.
- Body: Folded and seam welded, with maximum opening. The front fitted with an aluminium front panel. Handling grips mounted to front, left and right edges.
- Rear door: Surface mounted, with 130° opening. Concealed removable hinges, with captive pin. Hinges can be mounted to allow left or right hand opening. Door profiles MMDP are available as an accessory.
- Lock: Customised lock, with double grip for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts and locks are available as an accessory.
- Protection: IP 55, IK 10.
- Finish: RAL 7035 structured powder coating. Top bottom profile RAL7016.
- Delivery: Enclosure with aluminium front panel, rear door, plastic double-bit 3 mm key and mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Material
- Aluminum
- Color
- Light Gray
- Weight
- 21.38
Height (H)400
Depth (D)210
FinishPowder Coated
Color CodeRAL 7035
Protection RatingIP55
