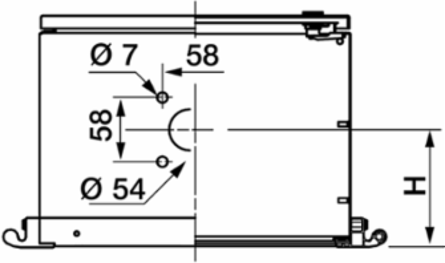

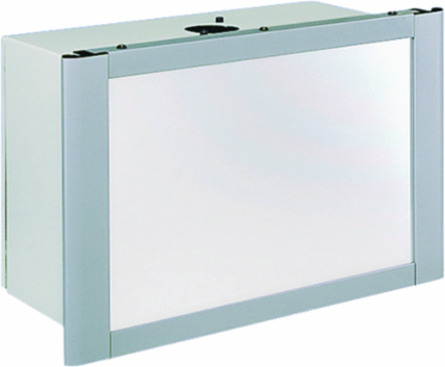

Schneider Electric NSYS3CM303020 Spacial S3CM Control Enclosure 300x300x200 mm, IP54 IK10, Steel
- MPN: NSYS3CM303020
- PPN: SCH-NSYS3CM303020
CAD
$673.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This control enclosure from Schneider Electric is engineered for robust protection in demanding environments. With its compact dimensions of 300x300x200 mm, it provides a durable solution for housing sensitive electrical components while meeting IP54 and IK10 ratings for resistance against dust, water, and impact. Made from high-quality steel, the Spacial S3CM enclosure not only guarantees longevity but also ensures reliable performance in various industrial applications. Its thoughtful design emphasizes both functionality and protection, making it an essential choice for professionals looking to safeguard their equipment.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain |
|---|
Physical Attributes
| Color | enclosure Gray RAL 7035)front face Gray RAL 7040) |
|---|---|
| Enclosure Nominal Width | 300 mm |
| Enclosure Nominal Height | 300 mm |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 body, 1 door with lock2 rail, 1 reinforcement plate, 1 trim frame |
| Carbon Footprint Of The Distribution Phase [A4] | 14.794624638287102, 15 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1.4681710181764553, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | single piece body |
| Door Opening Side | reversible 120 °) |
| Energy Efficiency Optimized | False |
| Material | enclosure and front face steeltrim frame aluminium |
| Number Of Doors | rear 1 |
| Product Destination | interface |
| Product Or Component Type | control enclosure |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 70 kg CO2 eq. |
| Pep Code | ENVPEP1001004EN |
| Pep Verification Date | 2024-10-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Certificate Agency | UL |
| Package Weight(Lbs) | 7.452 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Removable Parts | door by hingestrim frame by screws, 2 rails by screws |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 18 kg CO2 eq., 17.55582513893377 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 36 kg CO2 eq., 36.38511327843167 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | human-machine dialogue application |
| Door Type | Solid |
| Lock Type | 3 mm double-bar lock |
| Mounting Plate Description | without mounting plate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Name | PanelSeT S3CM |
| Range | PanelSeT |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Type Of Gland Plate | without gland plate |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Recyclability Potential In % | 98 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 70.203734073829 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1001004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1001004EN |
| Ip Degree Of Protection | IP54 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-10-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | control enclosure |
|---|
ETIM
| ETIM 8 | EC002504 |
|---|
| ETIM 9 | EC002504 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
