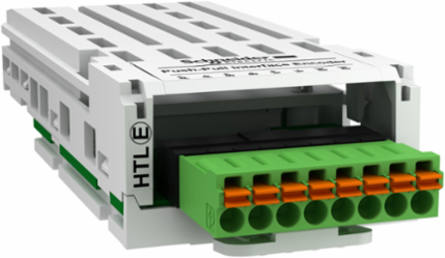

Schneider Electric VW3A3424 Altivar High Threshold Logic Encoder Interface Module, 12-24V, 0.2A
- MPN: VW3A3424
- PPN: SCH-VW3A3424
CAD
$191.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Sweden, Singapore, United States
Complementary Attributes
- Maximum Supply Current
- 0.2 A 12 V DC, 0.175 A 15 V DC, 0.1 A 24 V DC
- Maximum Operating Frequency
- 300 kHz
Maximum Cable Distance Between Devices500 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Protection Type
- short-circuit protection, overload protection
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Connector Type
- 1 removable spring connector
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Altivar
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
[Us] Rated Supply Voltage12 V DC, 15 V DC, 24 V DC
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Encoder Typehigh threshold logic (HTL)
Product Or Component Typeencoder interface module
ReturnabilityYes
Pep CodeENVPEP2010018EN
Package Weight(Lbs)144.0 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2010018EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2010018EN
General Attributes
- Product Or Component Type
- encoder interface module
Range Of ProductAltivar
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Input Attributes
- Input Signal
- open collector PNP A, open collector NPN A, push-pull differential A/AB/B, push-pull single ended AB, push-pull single ended A, open collector differential A/AB/B, open collector PNP AB, open collector NPN AB
