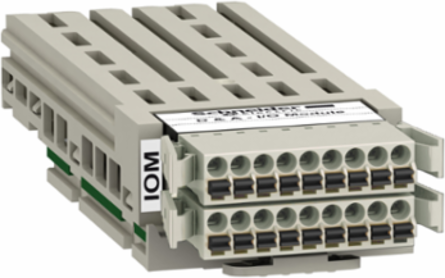

Schneider Electric VW3A3203 Altivar Additional I/O Module, 24V DC, 2 Analog Inputs, 6 Discrete Inputs

  • MPN: VW3A3203
  • PPN: SCH-VW3A3203
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $329.54

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm² / AWG 16.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Indonesia, Singapore, United States, ZZ

    Complementary Attributes

    Maximum Output Current100 mA, assignable logic

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, SI
    Input/Output Type2 analog input configurable voltage, current or probe6 discrete input, 2 discrete output
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.069616
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.678
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Manufacturing Carbon Footprint13.678
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1929
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Electrical Connectionremovable spring terminal block, 1.5 mm² / 16 AWG
    Product Or Component Typeadditional I/O module
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2010018EN
    Pep Verification Date2022-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
    Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential In %9
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Total Life Cycle2091.5
    Air Pollution (M3) Operational Energy Use [B6]1109.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle408.59
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]266.39
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]13.678
    Hazardous Waste Disposed Of (Kg) Total Life Cycle15.066
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle100.18
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]96.732
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]153.55
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]486.42
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]159.35
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]0.1588
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]5.8029
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle2.7419
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle637.77
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]0.2915
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle42.974
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]37.488
    Water Pollution (M3) Manufacturing [A1-a3]1155.6
    Water Pollution (M3) Operational Energy Use [B6]1085.1
    Customs Code8536904000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Carbon Footprint Of The Distribution Phase [A4]0.020644, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0071655, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]26 kg CO2 eq., 25.86
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Use Carbon Footprint25.86
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typereverse polarity protection digital inputshort-circuit protection output
    Software VersionEIME v5.9
    Total Lifecycle Carbon Footprint40 kg CO2 eq.
    Database Version2020-12
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo allow the Altivar Machine drives to manage additional sensors or specific sensors.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh43.8
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Carbon Footprint (Kg Co2 Eq Total Life Cycle)39.635
    Package Weight(Lbs)161.000 g
    Warranty (In Months)18
    Air Pollution (M3) Manufacturing [A1-a3]979.81
    Air Pollution (M3) End Of Life [C1-c4]1.1536
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]141.69
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle39.635
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]25.86
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]14.899
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]3.4156
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle640.51
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]0.2915
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle683.8
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]523.91
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle43.292
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]37.488
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.7419
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]150.81
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]486.42
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.4843
    Water Pollution (M3) Total Life Cycle2247.9
    Water Pollution (M3) Distribution [A4]3.3948
    Water Pollution (M3) End Of Life [C1-c4]2.8105

    Environment Attributes Main

    Take BackNo
    China Rohs RegulationX
    Carbon Footprint39.635
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2010018EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2010018EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2022-05-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeadditional I/O module

    ETIM

    ETIM 8EC002025
    ETIM 9EC002025

    Output Attributes

    Discrete Output LogicDQ11, DQ12) negative, DQ11, DQ12) positive
    Discrete Output TypeDQ11, DQ12) assignable logic 1-1 ms
    Maximum Output Current100 mA, assignable logic
    Discrete Output Number2
    Discrete Output Voltage24 V DC <= 30 V) assignable logic

    Input Attributes

    Analogue Input TypeAI4, AI5 configurable current 0...20 mA/4...20 mA 0-1 ms 14 bits, AI4, AI5 configurable voltage - 10...10 V DC, 24 V max 20 kOhm 0-1 ms 14 bits, AI4, AI5 configurable PTC, Pt 100, Pt 1000 0-1 ms 14 bits
    Analogue Input Number2
    Discrete Input Number6
    Discrete Input Voltage24 V DC <= 30 V)programmable
    Discrete Input Logicnegative DI11...DI16), positive DI11...DI16)
    Discrete Input Current2.5 mA
    Discrete Input TypeDI11...DI16) programmable 250 Ohm 1-1 ms
    Altivar Additional I/O Module, 24V DC, 2 Analog Inputs, 6 Discrete Inputs
