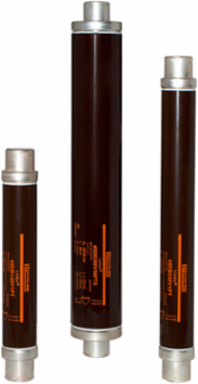

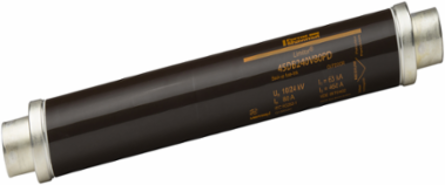

Mersen Q1000261 Limitor HV Fuse 24kV 80A, 442mm x 65mm, Ceramic Body, 65 kA Breaking Capacity
- MPN: Q1000261
- PPN: FER-Q1000261
CAD
$1130.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Limitor®-PD HV fuses are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers against effects of short-circuit currents. The VDE 0670 T402 defines fuses between 6.3A and 160A, for other ratings, thanks to consult Limitor®-P HV fuses range. To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Specifications
Key Specifications
| Rated voltage AC IEC | 24 kV |
|---|---|
| AC or DC | AC |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 65 kA |
| Design Details | VDE T402 |
| Indication System Type | Striker |
| Connection/Terminal Type | Cylindrical |
| Power Dissipation at Rated Current Value | 196 W |
| Weight | 6.834 lb |
| Ampere Rating | 80 A |
|---|---|
| Fuse Size | d=65mm, L=442mm |
| Clearing I2t At Rated Voltage | 104 kA²s |
| Min Interrupting Rating (MBC) | 460 A |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 20 in |
