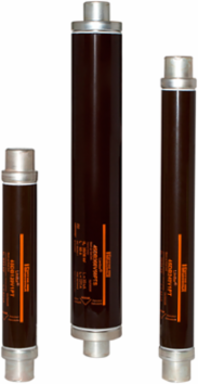

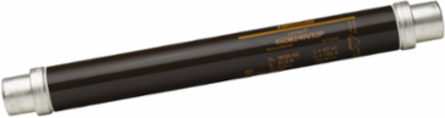

Mersen Y209344 Limitor®-P High Voltage Fuse 24kV 32A 442mm x 56mm, Ceramic Body, Medium Striker 80N
Mersen Y209344 Limitor®-P High Voltage Fuse 24kV 32A 442mm x 56mm, Ceramic Body, Medium Striker 80N
- MPN: Y209344
- PPN: FER-Y209344
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$569.89/ EA
Description
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents. To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Specifications
Specifications
- Rated voltage AC IEC
- 24 kV
- AC or DC
- AC
- Mounting
- Clip
- AC Max I.R./Breaking Capacity: I1
- 63 kA
- Design Details
- VDE T4
- Indication System Type
- Striker
- Connection/Terminal Type
- Cylindrical
- Power Dissipation at Rated Current Value
- 127 W
- Weight
- 5.071 lb
Ampere Rating31.5 A
Fuse Sized=56mm, L=442mm
Clearing I2t At Rated Voltage7 kA²s
Min Interrupting Rating (MBC)105 A
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Length20 in
