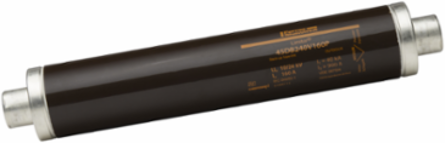

Mersen E1000113 Limitor®-P HV Fuse 24kV 160A 442mm x 88mm Ceramic Body

MPN: E1000113
PPN: FER-E1000113

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1049.71/ EA

Qty:

Loading add to cart quantity...

Description

Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents. To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.

Specifications

Rated voltage AC IEC: 24 kV

AC or DC: AC

Mounting: Clip

AC Max I.R./Breaking Capacity: I1: 63 kA

Design Details: VDE T4

Indication System Type: Striker

Connection/Terminal Type: Cylindrical

Power Dissipation at Rated Current Value: 515 W

Weight: 9.48 lb

Ampere Rating160 A

Fuse Sized=88mm, L=442mm

Clearing I2t At Rated Voltage540 kA²s

Min Interrupting Rating (MBC)600 A

Indication SystemYes

Connection/Terminal MaterialSilver-Plated Copper

Body/Insulating MaterialCeramic

Length20 in
