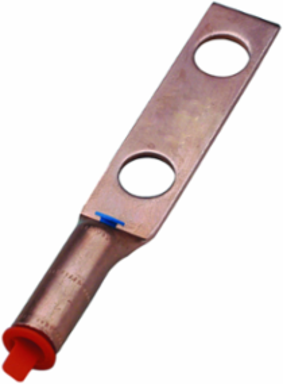

Burndy YGA342N HYLUG Copper Compression Terminal, 500 kcmil, 0.50 Inch Bolt Size, 6.08 Inch Length

MPN: YGA342N
UPC: 781810220344
PPN: BUR-279048

$123.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Hylug Copper ground, 500 kcmil, 5.94 in L, Grounding Irreversible Compression Terminals.

Documentation & Downloads

Specifications

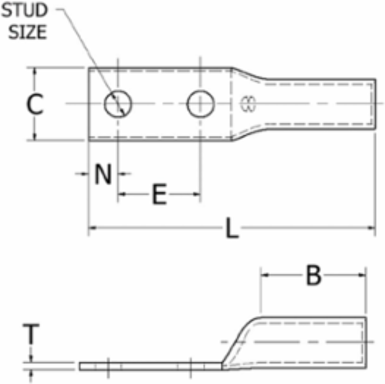

Dimensions

Dimension - B Length fraction	2-1/5 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Hole Size inch	0.56 in
Dimension - L Length Overall mm	154 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	1.52 in
Dimension - Stud Size inch	1/2
Dimension - Width inch	0.41 in

Dimension - B Length inch	2.20 in
Dimension - Bolt Size inch	0.50 in
Dimension - Hole Size mm	14 mm
Dimension - Length Overall inch	6.08 in
Dimension - Outside Diameter inch	1.06 in
Dimension - Strip Length inch	2-5/16
Dimension - Width fraction	2/5 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Listed Direct Burial	Yes
Certification - cULus	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Certification - ETL	No
Certification - UL Recognized	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	CM

Conductor Related

Conductor - Copper Str Size	500 kcmil

Conductor - Copper Str Size Range	500 kcmil

General

Application	For Direct Burial In Earth Or Concrete, Grounding Applications
Connector Type	Terminal
Material	Copper
Plated	N
Sub Brand	HYLUG
Type	Terminals
UPC 12 Digit	7818102203444
