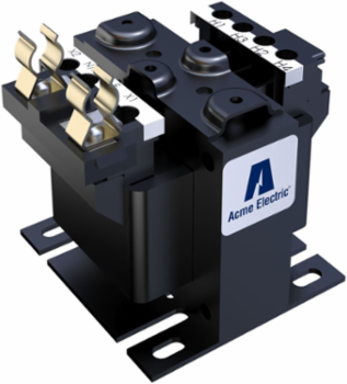

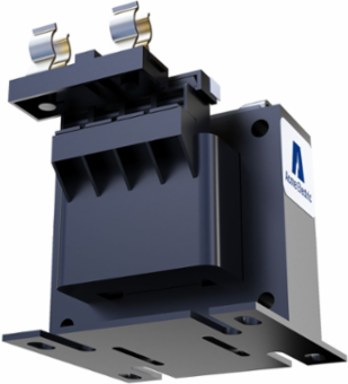

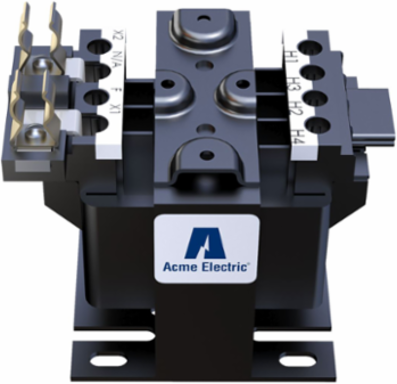

Acme Electric TB1500N008F0 Industrial Control Transformer 1.5KVA 240X480V 120V 30 lb
- MPN: TB1500N008F0
- UPC: 047503010815
- PPN: HBL-TB1500N008F0
- UNSPSC: 39121026
CAD
$1718.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ICT 1.5KVA 240X480-120 F0
Features
- Encapsulated design protects core & coil assembly from potentially damaging contaminants
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- Integrally molded terminal blocks with isolation barriers to prevent arc over
- Fuse blocks kits available and easily adaptable
- Series-parallel connecting links save wiring and labor costs
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Dimensions | 7.615 in x 7 in x 6.8971 in |
| Secondary Voltage | 120 V |
| Frequency Rating | 50/60 Hz |
| Length | 7.615 in |
| Standard | UL Listed;cUL Listed |
| Weight | 30 lb. |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | A |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503010815 |
| Pallet Length | 36.000 in |
| Pallet Width | 30.000 in |
| Color | Black |
|---|---|
| kVA | 1.5 |
| Application | Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Height | 6.8971 in |
| Primary Voltage | 240 X 480 V |
| Width | 7 in |
| Class Code | D10 |
| Harmonization Code | 8504320000 |
| Sub Class Code | D10D150 |
| BOX SIZE | 10.000x13.000x10.000 (in) |
| Pallet Height | 33.000 in |
| Pallet Weight | 876.000 lb. |
| NAICS Code | 335311 |
Certifications
| Certified Listed | UL Listed;cUL Listed |
|---|
