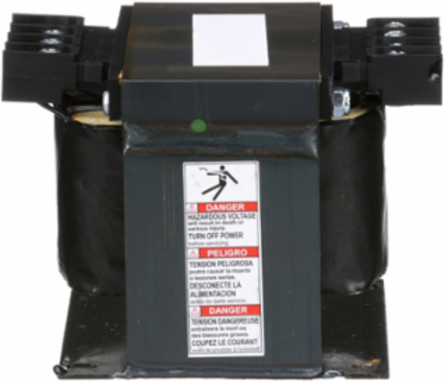

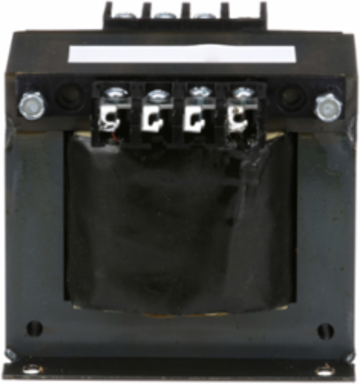

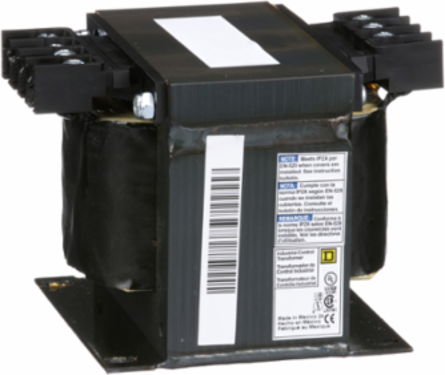

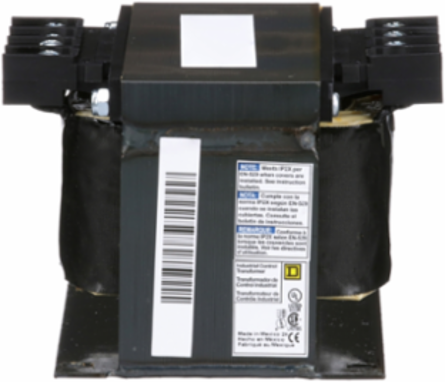

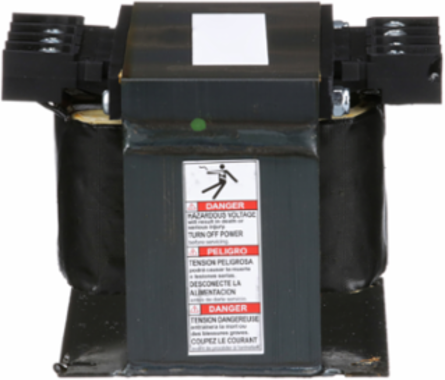

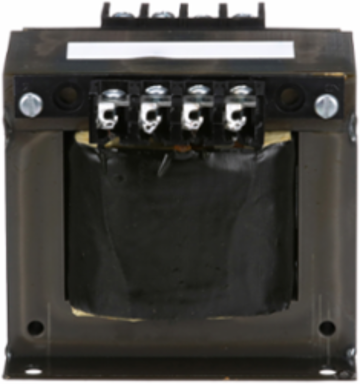

Square D 9070T500D5 Type T Industrial Control Transformer 500 VA 1 Phase 600V Primary 120V Secondary

MPN: 9070T500D5
UPC: 785901905691
PPN: SCH-9070T500D5

$315.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 500VA and is 1 phase. It has a 600V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Features

Designed to securely step down harsh 600V primary line voltage to a stable 120V secondary control voltage, this 500VA industrial control transformer is ideal for isolating local panel circuits. It delivers a reliable 1-phase power supply directly to logic boards, indicator lights, and PLCs, ensuring your sensitive control components operate safely away from high-voltage main lines.
Engineered specifically for industrial automation, the premium copper windings provide excellent voltage regulation to easily absorb the massive inrush currents generated when energizing relays, motor starters, and solenoids. This critical thermal stability prevents sudden voltage dips and eliminates frustrating contactor chatter, ensuring smooth, uninterrupted machinery startups.
Built to thrive in demanding manufacturing environments, this open-type Type T transformer features advanced Class 180 C insulation designed to safely accommodate a 115 C temperature rise. This extreme thermal endurance prevents coil degradation inside enclosed, non-ventilated motor control centers, drastically extending the component's operational lifespan and preventing catastrophic panel fires.
Meeting the industrial sector's most rigorous global performance standards, this Square D component is fully UL Listed, CSA Certified, and CE Marked. Standardizing your custom control panels with these factory-tested, globally compliant transformers guarantees your builds will smoothly pass local electrical inspections and satisfy strict international requirements for exported equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

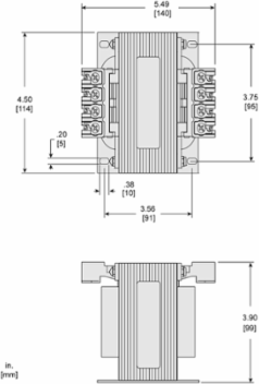

Depth	5.46 in

Complementary Attributes

Rated Power In Va	500 VA UL, 500 VA CSA, 500 VA NOM300 VA CE

Important Information Attributes

Certificate Agency	CSA file LR37055 guide 184-N-90, UL listed file E61239
Local Publishable Date	2026-06-30
Stocking Flag	N
Device Type	Transformer - dry
Traceability	No
Weee Product Category	4
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	screw clamp terminals
Insulation Temperature	180 °C
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	T
Sustainable Packaging	No
Height Nominal	3.8 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504314065

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	No
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	copper: winding

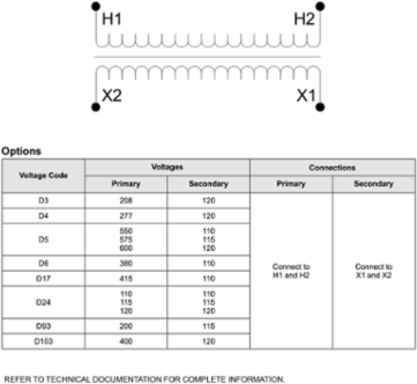

Primary Voltage	600 V 120 V575 V 115 V550 V 110 V
Product Or Component Type	Industrial Control Transformer
Returnability	Yes
Temperature Rise	115 °C
Width Nominal	4.5 in
Package Weight(Lbs)	5.602 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	FSC2

Take Back	No
Mercury Free	Yes
Nema Degree Of Protection	not rated (open device)
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
