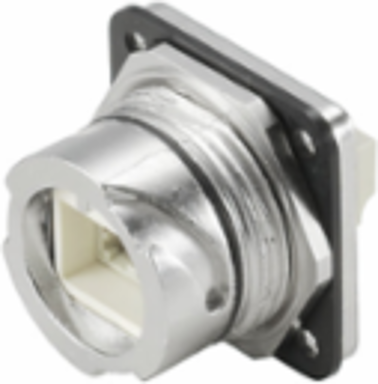

Weidmuller 1964440000 IE-BS-V01M-LCD-MM-C
- MPN: 1964440000
- PPN: WDM-1964440000
CAD
$147.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flange FO, IP67, Version 1, LC Duplex coupling, Multimode
Documentation & Downloads
Specifications
General Data
- Colour
- Miscellaneous
- Connection 2
- LC Duplex
- Fibre type
- Multimode
- Insertion loss
- ≤ 0.4 dB
- Protection degree
- IP67
- Seal material
- NBR
Connection 1LC Duplex
Description of articleVersion 1, LC Duplex coupling
Housing main materialZinc diecast
Plugging cycles500
Return loss (attenuation)≥ 30 dB
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 60.1 g
Standards
- Connector standard
- IEC 61076-3-106 Var. 1, IEC 61754-20
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-17
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
