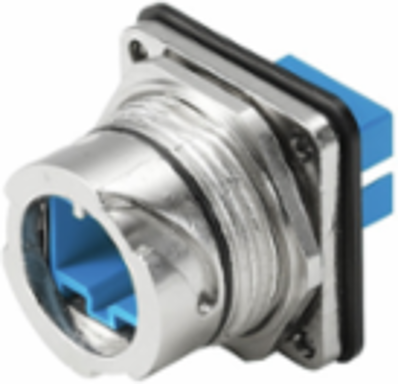

Weidmuller 1963440000 IE-BS-V01M-SCRJ2SC-SM-C
- MPN: 1963440000
- PPN: WDM-1963440000
CAD
$136.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flange FO, IP67, Version 1, coupling from SCRJ on 2*SC, Singlemode
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 2 | SCRJ |
| Fibre type | Singlemode |
| Insertion loss | ≤ 0.5 dB |
| Protection degree | IP67 |
| Seal material | NBR |
| Connection 1 | SC |
|---|---|
| Description of article | Version 1, coupling from SCRJ on 2*SC |
| Housing main material | Zinc diecast |
| Plugging cycles | 500 |
| Return loss (attenuation) | ≥ 40 dB |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 62.7 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 1, IEC 61754-4, IEC 61754-24 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
| UNSPSC | 30-21-18-17 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
