Weidmuller 1333160000 IE-C7FS8LM-305M
- MPN: 1333160000
- PPN: WDM-1333160000
CAD
$830.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

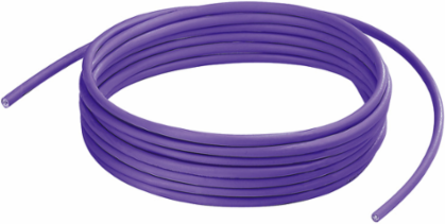

System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m
Documentation & Downloads
Specifications

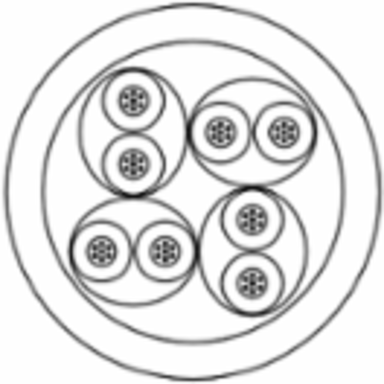

Cable Structure
| Copper diameter | 0.43 mm |
|---|---|
| Cross-section | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation cross-section | 1.04 mm |
| Arrangement of wire cores | Twisted pair |
| Shielding | S/FTP |
| Overlap of shielding braid | 60 % |
| Sheath diameter, min. | 5.5 mm |
| Sheathing colour | Magenta |
| Strands | 7 |
|---|---|
| Insulation | PE |
| Number of wires | 8 |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Material sheath | LSZH |
| Sheath diameter, max. | 5.9 mm |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E349758 |
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 25 mm |
|---|---|
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Min. bending radius, repetitive | 50 mm |
|---|---|
| Halogen | No |
Dimensions And Weights
| Length | 305 m |
|---|---|
| Net weight | 12,320 g |
| Length (inches) | 12.008 inch |
|---|---|
| Insulation cross-section | 1.04 mm |
Standards
| Generic communication cable facilities | ISO / IEC 11801:2002, EN 50173-1:2007 |
|---|
| Certificate no. (cULus) | E349758 |
|---|
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
Electrical Properties Of Cable
| Category | Cat.7 (ISO/IEC 11801) |
|---|---|
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Deviation | 25 ns/100m |
| Capacity at 1 kHz | 46 nF/km |
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
|---|---|
| Loop resistance | 183 Ω/km |
| Resistance differential | 5 % |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Operating temperature | -20 °C...60 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Installation temperature | 0 °C...50 °C |
