Weidmuller 2661080000 IE-C7FS8LO-305M
- MPN: 2661080000
- PPN: WDM-2661080000
CAD
$830.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

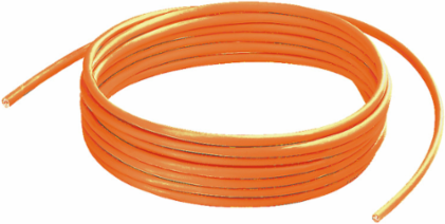

System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m
Specifications

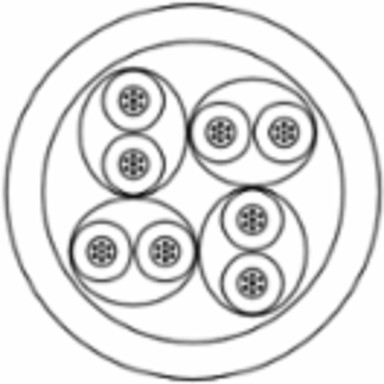

Cable Structure
- Copper diameter
- 0.43 mm
- Cross-section
- 4*2*AWG 27/7 - 4*2*0.1 mm²
- Insulation cross-section
- 1.04 mm
- Arrangement of wire cores
- Twisted pair
- Shielding
- S/FTP
- Overlap of shielding braid
- 60 %
- Sheath diameter, min.
- 5.5 mm
- Sheathing colour
- orange
Strands7
InsulationPE
Number of wires8
Colour sequence or wires - wire pairswhite - blue, white - orange, white - green, white - brown
Complete shieldingShielding braid made from copper wiring
Material sheathLSZH
Sheath diameter, max.5.9 mm
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 25 mm
- Resistance to spread of flame
- in accordance with IEC 60332-1
Min. bending radius, repetitive50 mm
HalogenNo
Dimensions And Weights
- Length
- 305 m
- Net weight
- 99,999 g
Length (inches)12.008 inch
Insulation cross-section1.04 mm
Electrical Properties Of Cable
- Category
- Cat.7 (ISO/IEC 11801)
- Characteristic impedance
- 100 ± 15 Ω at 1–100 MHz
- Deviation
- 25 ns/100m
- Capacity at 1 kHz
- 46 nF/km
Test voltage: wire-wire-shield750 V DC, 1 min
Loop resistance183 Ω/km
Resistance differential5 %
Temperatures
- Operating temperature, max.
- 60 °C
- Operating temperature
- -20 °C...60 °C
Operating temperature, min.-20 °C
Installation temperature0 °C...50 °C
