Weidmuller 8813140000 IE-7IC4x2xAWG23/1-PUR
- MPN: 8813140000
- PPN: WDM-8813140000
CAD
$518.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

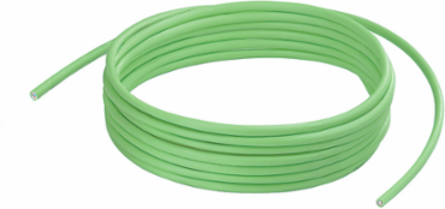

Installation cable, Cat.7 (ISO/IEC 11801), PUR, 100 m
Documentation & Downloads
Specifications
Electrical Properties
| Insulation strength | 5000 MΩ |
|---|

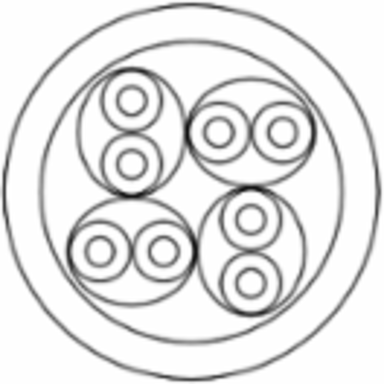

Cable Structure
| Wire material | Non-insulated copper wire |
|---|---|
| Strands | 1 |
| Insulation | PE |
| Number of wires | 8 |
| Wire pair shielding | Aluminium foil |
| Shielding | S/FTP |
| Shielding braid thickness | 0.1 mm |
| Sheath diameter, min. | 8 mm |
| Sheathing colour | green (RAL 6018) |
| Standard designations | IE-7IC4x2xAWG23/1-PUR 02YSC11Y PIMF, S/FTP |
|---|---|
| Cross-section | 4*2*AWG 23/1 - 4*2*0.255 mm² |
| Insulation cross-section | 1.4 mm |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Material sheath | PUR |
| Sheath diameter, max. | 8.4 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Colour | green |
|---|---|
| Min. bending radius, repetitive | 10 x cable diameter |
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| UV-resistant | Yes |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Silicone-free | Yes |
| Corrosiveness of fumes | to IEC 60754-2 |
Dimensions And Weights
| Length | 100 m |
|---|---|
| Net weight | 6,174 g |
| Length (inches) | 3.937 inch |
|---|---|
| Insulation cross-section | 1.4 mm |
Standards
| Corrosiveness of fumes | to IEC 60754-2 |
|---|
| Generic communication cable facilities | ISO / IEC 11801:2002, EN 50173-1:2007 |
|---|
Classifications
| ETIM 6.0 | EC000830 |
|---|---|
| eClass 9.0 | 27-06-18-05 |
| eClass 10.0 | 27-06-18-01 |
| ETIM 7.0 | EC003249 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
| UNSPSC | 26-12-16-06 |
Electrical Properties Of Cable
| Category | Cat.7 (ISO/IEC 11801) |
|---|---|
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Deviation | 5 ns/100m |
| Capacity at 1 kHz | 45 nF/km |
| Test voltage: wire-wire-shield | 700 V AC |
|---|---|
| Loop resistance | 150 Ω/km |
| Insulation strength | 5000 MΩ |
| Signal propagation time | 4.25 ns/m |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -15 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
