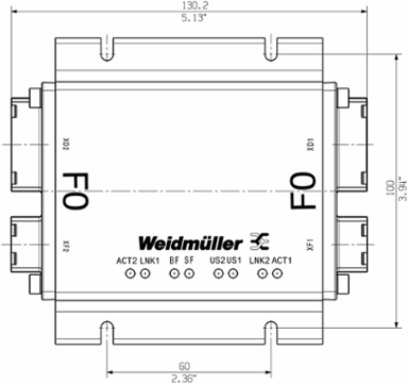

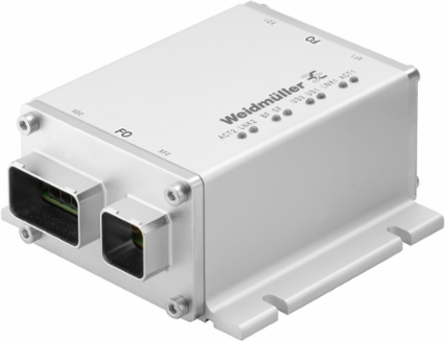

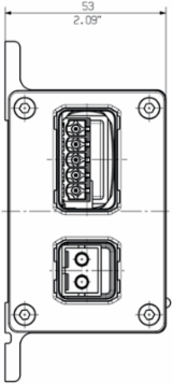

Weidmuller 2455360000 IE-CDR-V14MSCPOF/VAPM-C II
- MPN: 2455360000
- PPN: WDM-2455360000
CAD
$3366.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PROFINET POF Repeater, FreeCon, IP65
Documentation & Downloads
Specifications
Electrical Properties
- Baud rate
- 100 MB
- LED indicator
- FO1: port active, FO2: port active, SF: general error, BF: bus error, US1: voltage 1 (electronics), US2: voltage 2, ACT1: activity Port1, ACT2: activity Port2
- Operational voltage range
- 18…30 V DC
Current consumption200 mA typical
Operating voltage24 V DC
ProtocolPROFINET IRT
General Data
- Data interface
- PROFINET PushPull SCRJ POF (V14)
- Plugging cycles
- ≥ 100
- Protection degree
- IP65
- Wiring
- PROFINET
Housing main materialAluminium profile, Zinc die cast, electroplated lid
Power interfacePROFINET PushPull Power
UL 94 flammability ratingV-0
Approvals
- Approvals
- CE, CULUS
UL File Number SearchE141197
Dimensions And Weights
- Net weight
- 0.773 g
Standards
- Connector standard
- IEC 61076-3-117 Var. 14, IEC 61754-24
- PROFINET specification
- Conformance Class C acc. V2.3
Certificate no. (cULus)E141197
Classifications
- ETIM 6.0
- EC000732
- eClass 9.0
- 19-17-02-06
- eClass 10.0
- 19-17-02-06
ETIM 7.0EC000732
eClass 9.119-17-01-25
Product Information
- Product information
- Further development of 1253240000, IE-CDR-V14MSCPOF/VAPM-C. For commissioning, the new GSDML file (see Downloads) must be installed.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 55 °C
- Operating temperature
- -20 °C...55 °C
Operating temperature, min.-20 °C
