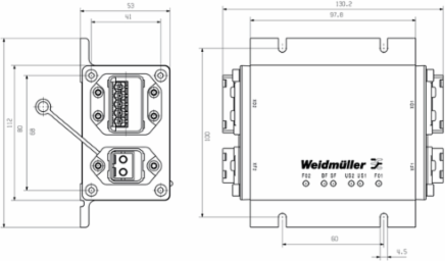

Weidmuller 1253240000 IE-CDR-V14MSCPOF/VAPM-C
- MPN: 1253240000
- PPN: WDM-1253240000
CAD
$2322.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

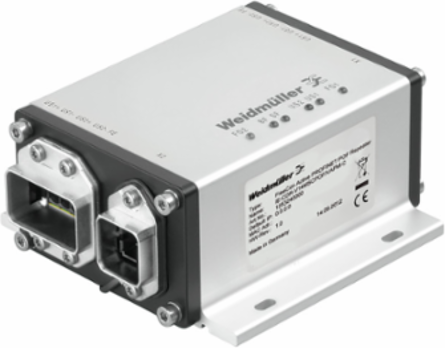

POF repeater, FreeCon, IP65
Documentation & Downloads
Specifications
Electrical Properties
| Baud rate | 100 MB |
|---|---|
| LED indicator | FO1: port active, FO2: port active, SF: general error, BF: bus error, US1: voltage 1 (electronics), US2: voltage 2 |
| Operational voltage range | 18…30 V DC |
| Current consumption | 200 mA typical |
|---|---|
| Operating voltage | 24 V DC |
| Protocol | PROFINET IRT |
General Data
| Data interface | PROFINET PushPull SCRJ POF (V14) |
|---|---|
| Plugging cycles | ≥ 100 |
| Protection degree | IP65 |
| Wiring | PROFINET |
| Housing main material | Aluminium profile, Cover: die-cast zinc, nickel plated |
|---|---|
| Power interface | PROFINET PushPull Power |
| UL 94 flammability rating | V-0 |
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 725.8 g |
|---|
Standards
| Connector standard | IEC 61076-3-117 Var. 14, IEC 61754-24 |
|---|
| Certificate no. (cULus) | E141197 |
|---|
Classifications
| ETIM 6.0 | EC000732 |
|---|---|
| eClass 9.0 | 19-17-02-06 |
| eClass 10.0 | 19-17-02-06 |
| ETIM 7.0 | EC000732 |
|---|---|
| eClass 9.1 | 19-17-01-25 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Operating temperature | -20 °C...55 °C |
| Operating temperature, min. | -20 °C |
|---|
