Weidmuller

Weidmuller 1318012000 IE-FM6C2UE0200MSD1SD1X

  • MPN: 1318012000
  • PPN: WDM-1318012000

CAD

$1963.96

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

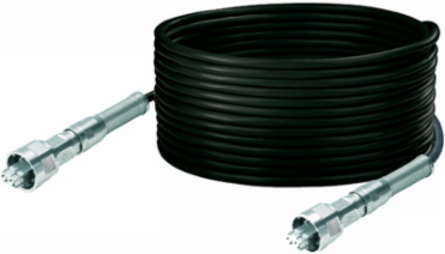

Dragline cable, SC IP 67 bayonet V01 metal, SC IP 67 bayonet V01 metal, 62.5 µm, PUR, 200 m

Documentation & Downloads

Specifications

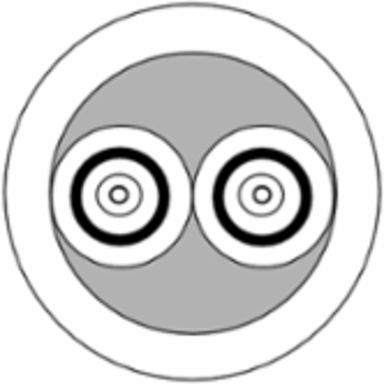

Cable Structure

Core diameter62.5 µm
Cable layoutBreak-out dragline
Sheathing colourblack
Sheath diameter7.5–8 mm
Material sheathPUR

Approvals

ROHSConform

Mechanical And Material Properties Of Cable

Min. bending radius, once only25 mm
Bending cycles100,000
Min. bending radius, repetitive70 mm

Dimensions And Weights

Length200 m
Net weight10,300 g
Length (inches)7.874 inch

Plug

Connector leftSC IP 67 bayonet V01 metal
Connector rightSC IP 67 bayonet V01 metal

Classifications

ETIM 6.0EC002607
eClass 9.027-06-10-03
eClass 10.027-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03

Fibre-Optic

Attenuation2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
Fibre typeGOF, Multimode, OM1
Return loss (attenuation)≥ 30 dB
Bandwidth200 MHz*km at 850 nm, 500 MHz*km at 1300 nm
Insertion loss≤ 0.4 dB

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.85 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...85 °C
Installation temperature-55 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-55 °C
Storage temperature-55 °C...85 °C
IE-FM6C2UE0200MSD1SD1X
IE-FM6C2UE0200MSD1SD1X
