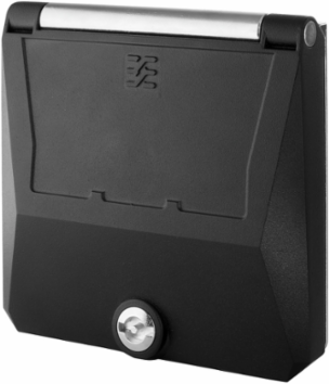

Weidmuller 2003190000 IE-FC-DFM-CAB
- MPN: 2003190000
- PPN: WDM-2003190000
CAD
$99.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FrontCom, Double frame, Metal cover, Lockable with cabinet key
Documentation & Downloads
Specifications
General Data
| Material cover | Zinc diecast, powder-coated |
|---|---|
| Product type | Double frame, Metal cover, Lockable with cabinet key |
| Protection degree | IP65, in closed state |
| Material frame | Zinc diecast |
|---|---|
| Protection class (UL) | Type 12 |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E223801 |
| ROHS | Conform |
|---|

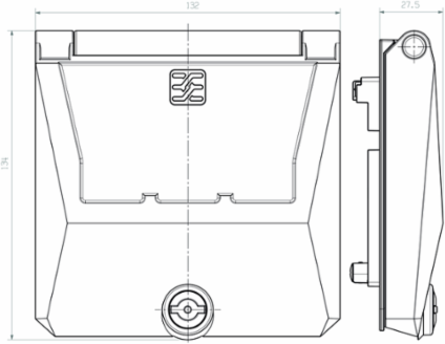

Dimensions And Weights
| Length | 134 mm |
|---|---|
| Width | 132 mm |
| Height | 27.5 mm |
| Wall thickness, max. | 5 mm |
| Net weight | 815.86 g |
| Length (inches) | 5.276 inch |
|---|---|
| Width (inches) | 5.197 inch |
| Height (inches) | 1.083 inch |
| Wall thickness, min. | 1 mm |
Standards
| Certificate No. (cURus) | E223801 |
|---|
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-02 |
| eClass 10.0 | 27-18-27-02 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
| UNSPSC | 31-16-23-03 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
