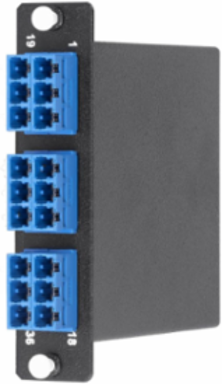

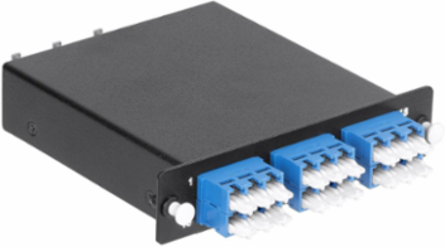

Hubbell Premise Wiring OCCSSM Fiber Optic High Density Cassette LGX 36 Fiber Ports OS2 0.700 Inch Width

MPN: OCCSSM
UPC: 662620343860
PPN: HBL-OCCSSM
UNSPSC: 43223310

$2422.83

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

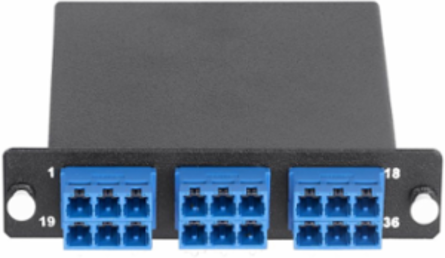

Fiber Optic High Density Cassette, LGX Standard Slot Size, 36 CS to 3 MTP, OS2, Blue

Features

Ultilizes the latest in Compact Duplex Connector Technology
Fits in a standard LGX Slot
Provides High fiber density in your current enclosure
Provides Extreme high density in any size Enclosure
Easy Access Pull Tab for Quick Disconnect

Specifications

Key Specifications

Country of Origin	United States
Height	1.1 in
Application	Interconnect
Environmental Conditions	Indoor
Standard	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Connectivity	Cassette
Enclosure Type	LGX
Number Of Ports	18
Freight Class Code	06168002
Sub Class Code	A68A690
Polarity	Type A
BOX SIZE	6.875x9.900x11.250 (in)
Carton - Number of Sub Packs	50
Carton - SCC-14 Next Lower Level Sub Pack	00662620343860
NAICS Code	3342104145

Width	0.700 in
Industry Standard(s)	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Enclosure	LGX
Fiber Type	OS2
General Literature Asset 1 Display Text	LGX Max CS and SN Cassettes
Display Size	4.0" x 1.1"
Number Of Fibers	36
Class Code	A68
Image Actual Or Representative	A
Adapter Type	CS Duplex
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.500 lb.
Carton - Pack Description	Carton
Carton - Total Units	50
