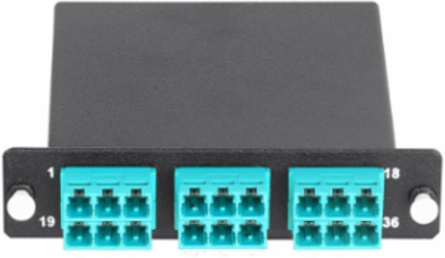

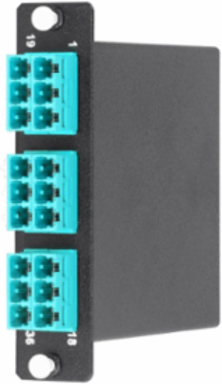

Hubbell Premise Wiring OCCSM34 Fiber Optic Cassette, LGX 36 Fiber Ports, OM3/OM4, Aqua

MPN: OCCSM34
UPC: 662620343877
PPN: HBL-OCCSM34
UNSPSC: 43223310

$2308.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Fiber Optic High Density Cassette, LGX Standard Slot Size, 36 CS to 3 MTP, OM3/OM4, Aqua

Features

Ultilizes the latest in Compact Duplex Connector Technology
Fits in a standard LGX Slot
Provides High fiber density in your current enclosure
Provides Extreme high density in any size Enclosure
Easy Access Pull Tab for Quick Disconnect

Specifications

Key Specifications

Country of Origin	United States
Height	1.1 in
Application	Interconnect
Environmental Conditions	Indoor
Standard	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Connectivity	Cassette
Enclosure Type	LGX
Number Of Ports	18
Freight Class Code	06168002
Image Actual Or Representative	A
Adapter Type	CS Duplex
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.500 lb.
Carton - Pack Description	Carton
Carton - Total Units	50

Width	5.300 in
Industry Standard(s)	Telcordia GR-326-CORE;TIA-568-C.3;TIA-604-FOCIS
Enclosure	LGX
Fiber Type	OM3/OM4
General Literature Asset 1 Display Text	LGX Max CS and SN Cassettes
Display Size	4.0" x 1.1"
Number Of Fibers	36
Class Code	A68
Harmonization Code	8536700000
Sub Class Code	A68A690
Polarity	Type A
BOX SIZE	6.875x9.900x11.250 (in)
Carton - Number of Sub Packs	50
Carton - SCC-14 Next Lower Level Sub Pack	00662620343877
NAICS Code	3342104145
