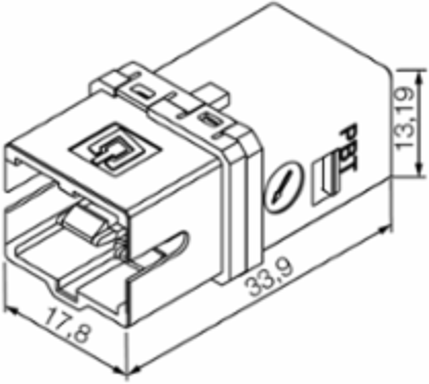

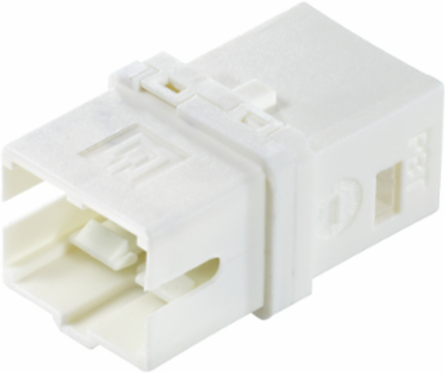

Weidmuller 1962870000 IE-BI-SCRJ2SC-SM-C
- MPN: 1962870000
- PPN: WDM-1962870000
CAD
$35.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SC insert, Bulkhead insert SCRJ to 2 SC, singlemode
Documentation & Downloads
Specifications
General Data
- Colour
- Miscellaneous
- Connection 1
- SC
- Description of article
- Bulkhead insert SCRJ to 2 SC, singlemode
- Housing main material
- PA
- Plugging cycles
- 1000
- Return loss (attenuation)
- ≥ 40 dB
ConfigurationConnector and flange insert for variant 1, 4 and 14 housings
Connection 2SCRJ
Fibre typeSinglemode
Insertion loss≤ 0.5 dB
Protection degreeIP67 with housing
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 17.4 g
Standards
- Connector standard
- IEC 61754-4, IEC 61754-24
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-01
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
