Weidmuller 1964470000 IE-BS-V04P-SCRJ2SC-MM-C
- MPN: 1964470000
- PPN: WDM-1964470000
CAD
$71.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

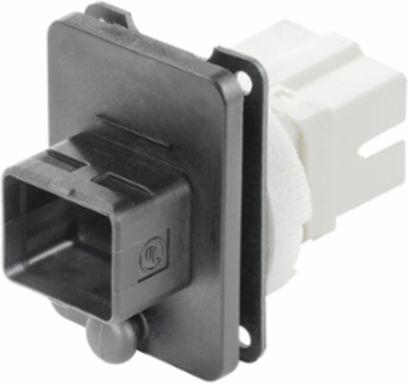

Flange FO, IP67, Version 4, coupling from SCRJ on 2*SC, Multimode, POF
Documentation & Downloads
Specifications
General Data
- Colour
- Miscellaneous
- Connection 2
- SCRJ
- Fibre type
- Multimode, POF
- Insertion loss
- ≤ 0.4 dB
- Protection degree
- IP67
- Seal material
- NBR
Connection 1SC
Description of articleVersion 4, coupling from SCRJ on 2*SC
Housing main materialPA UL 94 V0
Plugging cycles500
Return loss (attenuation)≥ 30 dB
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 28.7 g
Standards
- Connector standard
- IEC 61076-3-106 Var. 4, IEC 61754-4, IEC 61754-24
Classifications
- ETIM 6.0
- EC001122
- eClass 9.0
- 19-17-01-22
- eClass 10.0
- 19-17-01-22
ETIM 7.0EC001122
eClass 9.119-07-01-22
UNSPSC30-21-18-17
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
