Weidmuller 1449410000 IE-FSMZ2FY0002MSJ0SD0
- MPN: 1449410000
- PPN: WDM-1449410000
CAD
$87.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

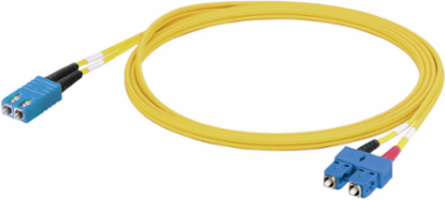

Pre-assembled patch cable, crossover, SCRJ IP 20, SC duplex IP 20, 9 µm, LSZH, 2 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 9 µm |
|---|---|

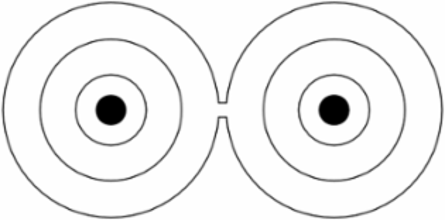

| Cable layout | ZIPCORD |
| Material sheath | LSZH |
| Sheath diameter | 3*6 mm |
|---|---|
| Standard designations | I-V(ZN)Y |
| Sheathing colour | yellow |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 30 mm |
|---|
| Min. bending radius, repetitive | 60 mm |
|---|
Dimensions And Weights
| Length | 2 m |
|---|---|
| Net weight | 58 g |
| Length (inches) | 0.079 inch |
|---|
Plug
| Connector left | SCRJ IP 20 |
|---|
| Connector right | SC duplex IP 20 |
|---|
Standards
| Connector standard | IEC 61754-24, IEC 61754-4 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
Fibre-Optic
| Fibre type | Singlemode, OS1 |
|---|
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 75 °C |
| Operating temperature | -5 °C...75 °C |
| Installation temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...75 °C |
