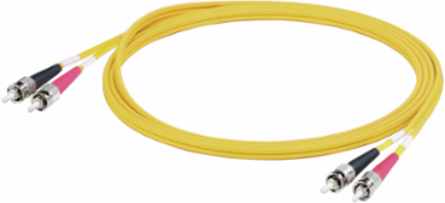

Weidmuller 8961100000 IE-FSMZ2FY0002MST0ST0X
- MPN: 8961100000
- PPN: WDM-8961100000
CAD
$64.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
, ST IP 20, ST IP 20, 9 µm, LSZH, 2 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 9 µm |
|---|---|

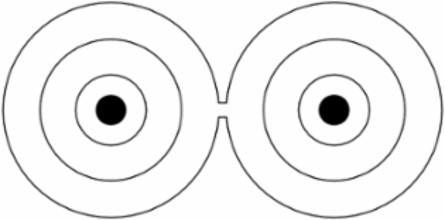

| Cable layout | ZIPCORD |
| Material sheath | LSZH |
| Sheath diameter | 3*6 mm |
|---|---|
| Standard designations | I-V(ZN)Y |
| Sheathing colour | yellow |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 30 mm |
|---|
| Min. bending radius, repetitive | 60 mm |
|---|
Dimensions And Weights
| Length | 2 m |
|---|---|
| Net weight | 37 g |
| Length (inches) | 0.079 inch |
|---|
Plug
| Connector left | ST IP 20 |
|---|
| Connector right | ST IP 20 |
|---|
Standards
| Connector standard | IEC 61754-2 |
|---|
Classifications
| ETIM 6.0 | EC000034 |
|---|---|
| eClass 9.0 | 27-06-18-03 |
| eClass 10.0 | 27-06-18-03 |
| ETIM 7.0 | EC000034 |
|---|---|
| eClass 9.1 | 27-06-90-90 |
Fibre-Optic
| Fibre type | Singlemode, OS1 |
|---|
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 75 °C |
| Operating temperature | -5 °C...75 °C |
| Installation temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...75 °C |
