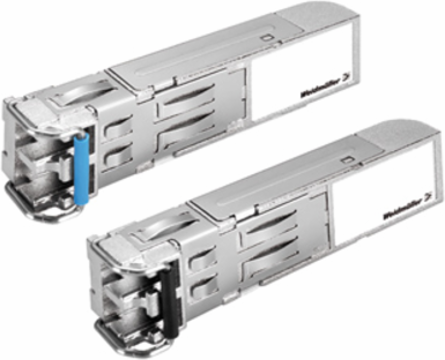

Weidmuller 1241490000 SFP Transceiver 850 nm, Multimode, 0-60 C, 500 m, 34.8 g

MPN: 1241490000
PPN: WDM-1241490000

$466.13

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SFP Transceiver, 0 °C...60 °C, Gigabit-Ethernet, Multimode, LC connectors, 500 m

Documentation & Downloads

Specifications

Approvals

Approvals	cURus, DNV GL, EAC
UL File Number Search	E230683

ROHS	Conform

Dimensions And Weights

Net weight	34.8 g

Environmental Conditions

Humidity	5 to 95 % (non-condensing)
Operating temperature, min.	0 °C
Storage temperature, min.	-40 °C

Operating temperature, max.	60 °C
Storage temperature, max.	85 °C

Guarantee

Time interval	3 years

Classifications

ETIM 6.0	EC001121
eClass 9.0	27-44-03-92
eClass 10.0	27-44-03-92

ETIM 7.0	EC001121
eClass 9.1	27-44-02-92

Technical Data

Type of mounting	Insert in SFP slot

Emc Conformity And Approvals

Security	UL, TÜV

Ship use	DNV-GL

Fibre Optic Gigabit Ethernet

Link budget Gigabit Ethernet	8.5 dB
Min. TX Gigabit Ethernet	-9.5 dBm
System reserve Gigabit Ethernet	0 dBm
Wave length Gigabit Ethernet	850 nm

Max. TX Gigabit Ethernet	-4 dBm
Receive sensitivity Gigabit Ethernet	-18 dBm
Typical distances Gigabit Ethernet	550 m (50/125 μm, 400 MHz * km or 62.5/125 μm, 500 MHz * km @ 850 nm, multi-mode fibre optic cable)
