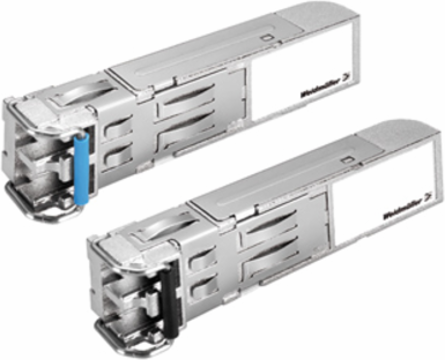

Weidmuller 1286700000 SFP Transceiver Gigabit-Ethernet Multi-Mode LC 500 m -40 C to 85 C
- MPN: 1286700000
- PPN: WDM-1286700000
CAD
$647.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SFP Transceiver, -40 °C...85 °C, Gigabit-Ethernet, Multimode, LC connectors, 500 m
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus, DNV GL
- UL File Number Search
- E230683
ROHSConform
Dimensions And Weights
- Net weight
- 64 g
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.85 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 3 years
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC001121
eClass 9.127-44-02-92
Technical Data
- Type of mounting
- Insert in SFP slot
Emc Conformity And Approvals
- Security
- UL, TÜV
Ship useDNV-GL
Fibre Optic Gigabit Ethernet
- Link budget Gigabit Ethernet
- 8.5 dB
- Min. TX Gigabit Ethernet
- -9.5 dBm
- System reserve Gigabit Ethernet
- 0 dBm
- Wave length Gigabit Ethernet
- 850 nm
Max. TX Gigabit Ethernet-4 dBm
Receive sensitivity Gigabit Ethernet-18 dBm
Typical distances Gigabit Ethernet550 m (50/125 μm, 400 MHz * km or 62.5/125 μm, 500 MHz * km @ 850 nm, multi-mode fibre optic cable)
Interfaces
- Ethernet ports
- 1
Plug-in connectorDuplex-LC
Power Supply
- Voltage supply
- 3.3 V (via Ethernet switch)
