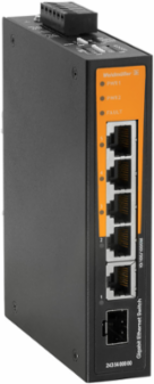

Weidmuller 2435410000 Unmanaged Gigabit Ethernet Switch, 4 Ports RJ45, IP30, -40 C to 75 C, Metal Housing
- MPN: 2435410000
- PPN: WDM-2435410000
CAD
$709.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, unmanaged, Gigabit Ethernet, Number of ports: 4 * RJ45 10/100/1000BaseT(X), 1 * combo-port (10/100/1000BaseT(X) or 100/1000BaseSFP), IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, DNV GL, KOREANCERT
- UL File Number Search
- E141197
ROHSConform
Mtbf
- MTBF
- 2,823,446 hrs
DatabaseTelcordia (Bellcore), GB
Dimensions And Weights
- Width
- 29 mm
- Height
- 135 mm
- Depth
- 105 mm
- Net weight
- 422 g
Width (inches)1.142 inch
Height (inches)5.315 inch
Depth (inches)4.134 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.75 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC000734
- eClass 9.0
- 19-17-01-06
- eClass 10.0
- 19-17-04-02
ETIM 7.0EC000734
eClass 9.119-17-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Switch Characteristics
- Bandwidth backplane
- 10 Gbps
- MAC table size
- 8 K
Jumbo frame supportup to 10 KB
Packet buffer size1,024 Kbit
Technical Data
- Housing main material
- metal
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
SecurityUL508, EN60950-1
Shockaccording to IEC 60068-2-27
Interfaces
- Alarm contact
- 1 relay output with a current capacity of 1 A at 24 V DC
- Fibre-optic ports
- 100/1000Base SFP Slot
- Note 1
- When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
- Number of ports
- 4 * RJ45 10/100/1000BaseT(X), 1 * combo-port (10/100/1000BaseT(X) or 100/1000BaseSFP)
DIP switchPort surveillance, Broadcast storm protection enable/disable, Enable/disable jumbo frame support, Activate/deactivate IEEE 802.3az energy-efficient Ethernet, Switching between 100BaseSFP and 1000BaseSFP on SFP port
LED indicatorPower LED: PWR1, PWR2, FAULT, 10/100/1000M
Note 2The SFP slot can only be used with Weidmüller SFP transceivers. Third-party SFP transceivers are not accepted by the switch.
RJ45 ports10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Reverse polarity protection
- Available
- Supply voltage, min.
- 9.6 V DC
Current consumption0.16 A at 24 V
Supply voltage, max.60 V DC
Voltage supply12/24/48 V DC, 2 redundant inputs
Technology
- Data switching
- Store and Forward
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet
Flow controlIEEE 802.3x flow control, Back pressure flow control
