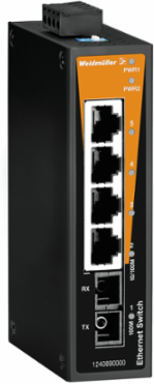

Weidmuller 1286550000 Unmanaged Network Switch, 4 RJ45 Ports, 1 SC Multi-mode, IP30, -40 to 75 C
- MPN: 1286550000
- PPN: WDM-1286550000
CAD
$540.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, unmanaged, Fast Ethernet, Number of ports: 4 x RJ45, 1 * SC Multi-mode, IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Fibre Optic 100Basefx
- Link budget multimode
- 12 dB
- Min. TX multi-mode
- -20 dBm
- System reserve multi-mode
- -6 dBm
- Wavelength multi-mode
- 1,300 nm
Max. TX multi-mode-10 dBm
Receive sensitivity multi-mode-32 dBm
Typical distances multi-mode4 km (62.5/125 μm multi-mode cable), 5 km (50/125 μm, multi-mode cable)
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT
- UL File Number Search
- E141197
ROHSConform
Mtbf
- MTBF
- 3,040,784 hrs
DatabaseTelcordia (Bellcore), GB
Dimensions And Weights
- Width
- 30 mm
- Height
- 115 mm
- Depth
- 70 mm
- Net weight
- 175 g
Width (inches)1.181 inch
Height (inches)4.528 inch
Depth (inches)2.756 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.75 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC000734
- eClass 9.0
- 19-17-01-06
- eClass 10.0
- 19-17-04-02
ETIM 7.0EC000734
eClass 9.119-17-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Switch Characteristics
- Bandwidth backplane
- 1 Gbps
- Packet buffer size
- 512 Kbit
MAC table size1 K
Technical Data
- Housing main material
- Aluminium
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc
SecurityUL508
Shockaccording to IEC 60068-2-27
Interfaces
- DIP switch
- 1x for enabling/disabling the broadcast storm protection
- LED indicator
- PWR1, PWR2, 10/100M (TP-Port), 100M (fibre-optic port).
- RJ45 ports
- 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
Fibre-optic ports100BaseFX ports (SC connector), Multimode
Number of ports4 x RJ45, 1 * SC Multi-mode
Power Supply
- Connection type
- 1 removable 4-pin terminal block
- Overload current protection
- 1.1 A
- Supply voltage, max.
- 60 V DC
- Voltage supply
- 12/24/48 V DC, 2 redundant inputs
Current consumption0.11 A at 24 V
Reverse polarity protectionAvailable
Supply voltage, min.9.6 V DC
Technology
- Data switching
- Store and Forward
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Flow controlIEEE 802.3x flow control, Back pressure flow control
