Weidmuller

Weidmuller 1449420400 IE-FSMD2UE0040MSDESDEX

  • MPN: 1449420400
  • PPN: WDM-1449420400

CAD

$504.21

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

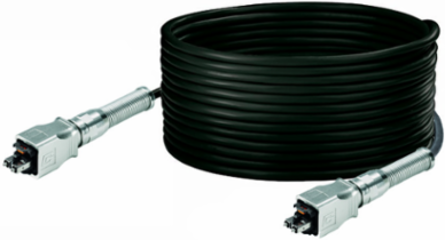

Dragline cable, SC IP 67 PushPull V14 metal, SC IP 67 PushPull V14 metal, 9 µm, PUR, 40 m

Documentation & Downloads

Specifications

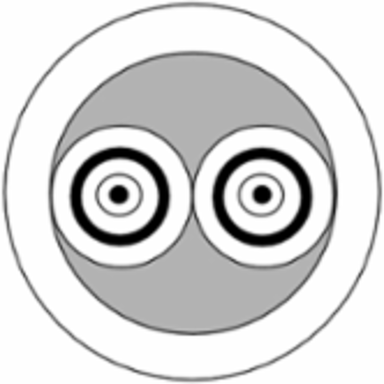

Cable Structure

Core diameter9 µm
Cable layoutBreak-out dragline
Sheathing colourblack
Sheath diameter6 mm
Material sheathPUR

Approvals

ROHSConform

Mechanical And Material Properties Of Cable

Min. bending radius, once only25 mm
Bending cycles100,000
Min. bending radius, repetitive77 mm

Dimensions And Weights

Length40 m
Net weight1,268.08 g
Length (inches)1.575 inch

Plug

Connector leftSC IP 67 PushPull V14 metal
Connector rightSC IP 67 PushPull V14 metal

Standards

Connector standardIEC 61076-3-117 Var. 14, IEC 61754-24

Classifications

ETIM 6.0EC002607
eClass 9.027-06-10-03
eClass 10.027-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03

Fibre-Optic

Attenuation≤0.4 dB/km at 1310 nm
Insertion loss≤ 0.5 dB
Fibre typeSinglemode, OS 2
Return loss (attenuation)≥ 40 dB

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.80 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...80 °C
Installation temperature-20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...80 °C
IE-FSMD2UE0040MSDESDEX
IE-FSMD2UE0040MSDESDEX
