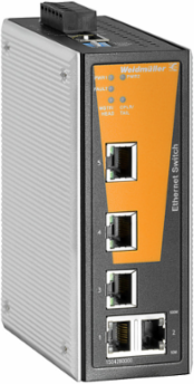

Weidmuller 1504280000 Managed Network Switch, 5x RJ45 Ports, IP30, -10 C to 60 C, 650 g
- MPN: 1504280000
- PPN: WDM-1504280000
CAD
$941.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, managed, Fast Ethernet, Number of ports: 5x RJ45, IP30, -10 °C...60 °C
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS, CULUSEX, DNV GL, EAC, KOREANCERT
- UL File Number Search
- E230683
ROHSConform
Mtbf
- MTBF
- 1,547,941 hrs
DatabaseTelcordia (Bellcore), GB
Dimensions And Weights
- Width
- 53.6 mm
- Height
- 135 mm
- Depth
- 105 mm
- Net weight
- 650 g
Width (inches)2.11 inch
Height (inches)5.315 inch
Depth (inches)4.134 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -10 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC000734
- eClass 9.0
- 19-17-01-06
- eClass 10.0
- 19-17-04-01
ETIM 7.0EC000734
eClass 9.119-17-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Switch Characteristics
- Bandwidth backplane
- 1 Gbps
- MAC table size
- 2 K
- Packet buffer size
- 1 Mbit
- VLAN-ID max
- 4,094
IGMP-Groups256
Max. number of available VLANs64
Priority queues4
VLAN-ID min1
Technical Data
- Housing main material
- metal
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D
SecurityUL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
Shockaccording to IEC 60068-2-27
Interfaces
- Alarm contact
- 1 relay output with a current capacity of 1 A at 24 V DC
- DIP switch
- Turbo-Ring, Master, Coupler, Reserve
- Number of ports
- 5x RJ45
Console port interfaceRS-232
LED indicatorPWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port)
RJ45 ports10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Overload current protection
- Existing
- Supply voltage, max.
- 60 V DC
- Voltage supply
- 12/24/48 V DC, 2 redundant inputs
Current consumption0.286 A bei 24 V
Reverse polarity protectionAvailable
Supply voltage, min.9.6 V DC
Technology
- Data switching
- Store and Forward
- MIB
- MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN tagging
Flow controlIEEE 802.3x flow control, Back pressure flow control
ProtocolIGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6
