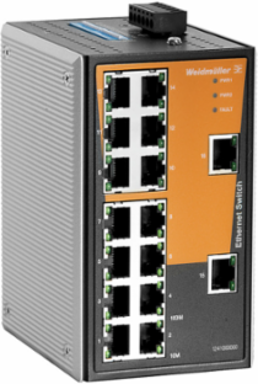

Weidmuller 1241000000 Unmanaged 16-Port Fast Ethernet Switch, IP30, 1,140g, 12/24/48V DC
- MPN: 1241000000
- PPN: WDM-1241000000
CAD
$1315.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, unmanaged, Fast Ethernet, Number of ports: 16x RJ45, IP30, 0 °C...60 °C
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC, KOREANCERT
- UL File Number Search
- E230683
ROHSConform
Mtbf
- MTBF
- 257,000 hrs
DatabaseMIL-HDBK-217F, GB 25°C
Dimensions And Weights
- Width
- 80.5 mm
- Height
- 135 mm
- Depth
- 105 mm
- Net weight
- 1,140 g
Width (inches)3.169 inch
Height (inches)5.315 inch
Depth (inches)4.134 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- 0 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC000734
- eClass 9.0
- 19-17-01-06
- eClass 10.0
- 19-17-04-02
ETIM 7.0EC000734
eClass 9.119-17-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Switch Characteristics
- Bandwidth backplane
- 3.2 Gbps
- Packet buffer size
- 1.25 Mbit
MAC table size4 K
Technical Data
- Housing main material
- metal
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
SecurityUL508, UL60950-1, EN60950-1
Shockaccording to IEC 60068-2-27
Interfaces
- DIP switch
- Port surveillance, Broadcast storm protection enable/disable
- Number of ports
- 16x RJ45
- Signalling contact
- 1 relay output with a current capacity of 1 A at 24 V DC
LED indicatorPWR1, PWR2, FAULT, 10/100M (TP-Port)
RJ45 ports10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
Power Supply
- Connection type
- 1 removable 6-pin terminal block
- Overload current protection
- 1.6 A
- Supply voltage, max.
- 60 V DC
- Voltage supply
- 12/24/48 V DC, 2 redundant inputs
Current consumption0.27 A at 24 V
Reverse polarity protectionAvailable
Supply voltage, min.9.6 V DC
Technology
- Data switching
- Store and Forward
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Flow controlIEEE 802.3x flow control, Back pressure flow control
