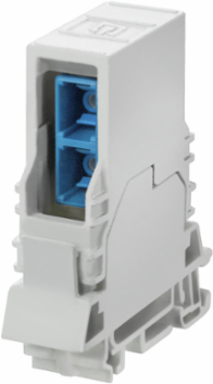

Weidmuller 8946980000 IE-TO-SCD-SM
- MPN: 8946980000
- PPN: WDM-8946980000
CAD
$52.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mounting rail outlet, fibre-optic, SC duplex, Singlemode, IP20
Documentation & Downloads
Specifications
General Data
| Colour | Light Grey |
|---|---|
| Connection 2 | SC-Duplex |
| Housing main material | PA UL 94 V0 |
| Plugging cycles | 1000 |
| Type of mounting | TS 35 |
| Connection 1 | SC-Duplex |
|---|---|
| Fibre type | Singlemode |
| Insertion loss | ≤ 0.5 dB |
| Protection degree | IP20 |
Approvals
| Approvals | UL |
|---|---|
| UL File Number Search | E477798 |
| ROHS | Conform |
|---|

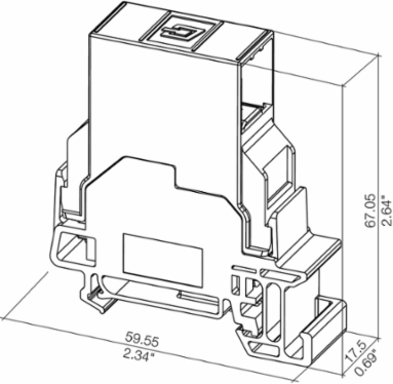

Dimensions And Weights
| Net weight | 40 g |
|---|
Standards
| Connector standard | IEC 61754-4 |
|---|
| Certificate No. (UL) | E477798 |
|---|
Classifications
| ETIM 6.0 | EC000313 |
|---|---|
| eClass 9.0 | 27-44-03-20 |
| eClass 10.0 | 27-44-03-20 |
| ETIM 7.0 | EC000313 |
|---|---|
| eClass 9.1 | 19-17-01-25 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Temperature range, installation, max. | 70 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Temperature range, installation, min. | -25 °C |
