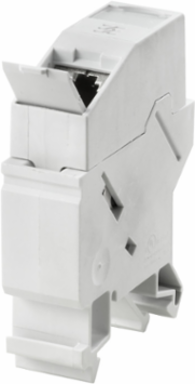

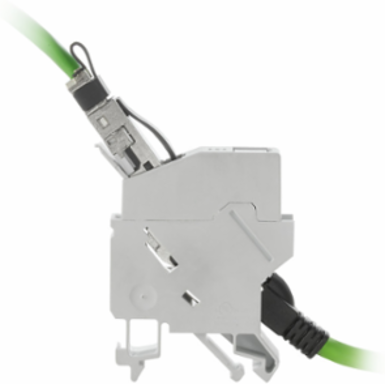

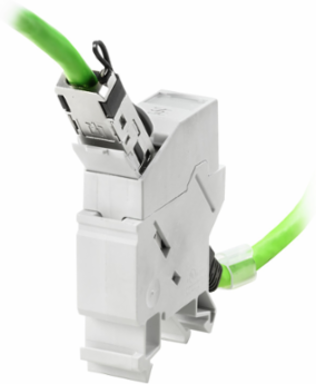

Weidmuller 8879050000 IE-XM-RJ45/RJ45

IE-XM-RJ45/RJ45
IE-XM-RJ45/RJ45
IE-XM-RJ45/RJ45
IE-XM-RJ45/RJ45
  • MPN: 8879050000
  • PPN: WDM-8879050000

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$49.88/ EA

Description

Terminal rail outlet, RJ45-RJ45 coupler, IP20, Cat.6 (ISO/IEC 11801)

Specifications

Electrical Properties

Contact resistance
≤ 20 mΩ
Dielectric strength, contact / contact
≥ 1000 V DC
Insulation strength
500 MΩ
Current-carrying capacity at 50 °C1 A
Dielectric strength, contact / shield≥ 1500 V DC
PoE / PoE+conforming to IEEE 802.3at

General Data

Connection 1
RJ45
Description of article
RJ45-RJ45 coupler
Wiring
Colour-coded pin assignment acc. toEIA/TIA T568 A (copper)
Housing main material
PA 66, UL 94: V-0
Type of mounting
TS 35
Plugging cycles
750
Connection 2RJ45
Configuration1 TE pitch dimension acc. to DIN 43880. insta-compatibleInstallation flange with mounting frame
ColourLight Grey
CategoryCat.6 (ISO/IEC 11801)
Protection degreeIP20

Approvals

Approvals
CULUS, DNV GL
UL File Number Search
E316369
ROHSConform

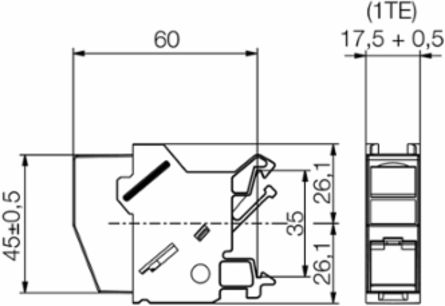

Dimensions And Weights

Net weight
49 g

Standards

Connector standard
IEC 60603-7-5
Certificate no. (cULus)
E316369
Certificate No. (GERMLLOYD)33451-06

Classifications

ETIM 6.0
EC001121
eClass 9.0
27-44-03-90
eClass 10.0
27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-03-90
UNSPSC43-17-27-10

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

Temperatures

Operating temperature, max.
70 °C
Operating temperature
-25 °C...70 °C
Operating temperature, min.-25 °C
